BikeWise

Ghost RIOT AM Essential 2021

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

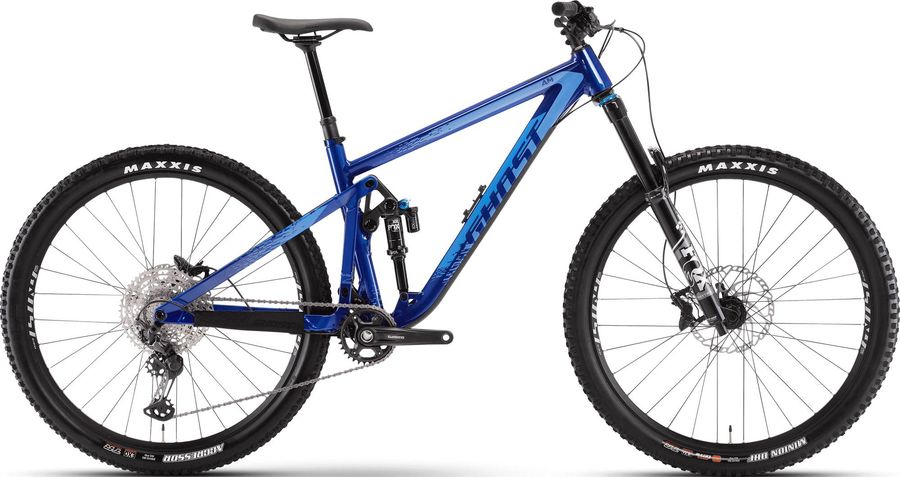

Ghost RIOT AM Essential 2021

About the Ghost RIOT AM Essential 2021

The Ghost RIOT AM Essential 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Ghost RIOT AM Essential 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
WTB Volt
Headset
Acros AZX-203
Seatpost
Limotec Alpha 1 34.9 mm 125 (S) 150 (M) 170 (L/XL)
Handlebar
Ground Fiftyone Dia. 31.8 mm 780/15 (S) 780/35 (M) 780/40 (L/XL)
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano FC-MT510 32T
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
RIOT AL
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Float Rhythm
Wheels
Rims
Rodi Tryp 30 584x30 (S) 622x30 (M-XL) mm 32H
Tires
Maxxis Minion DHF 3C MaxxTerra Exo 2.3
Rear hub
Fastace DR2116B 12x148 mm
Front hub
Fastace DF813 15x110 mm

Geometry

Size SM MD LG XL
a
Seat tube length
417,0
441,0
465,0
489,0
b
Seat tube angle
76,0º
77,0º
77,0º
77,0º
c
Top tube length
607,0
621,0
651,0
685,0
d
Head tube length
120,0
100,0
140,0
160,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
45,0
46,0
48,0
49,0
g
Trail
123,0
122,0
120,0
119,0
h
Wheelbase
1224,0
1271,0
1310,0
1349,0
i
Chainstay length
434,0
455,0
455,0
455,0
j
Bottom bracket drop
28,0
40,0
41,0
42,0
k
Stack height
619,0
624,0
660,0
679,0
l
Reach
453,0
482,0
502,0
531,0
m
Standover height
766,0
791,0
792,0
792,0
x
Bottom bracket height
327,0
315,0
314,0
313,0
y
Front center
791,0
819,0
858,0
897,0
