Ghost RIOT AM Universal 2021

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

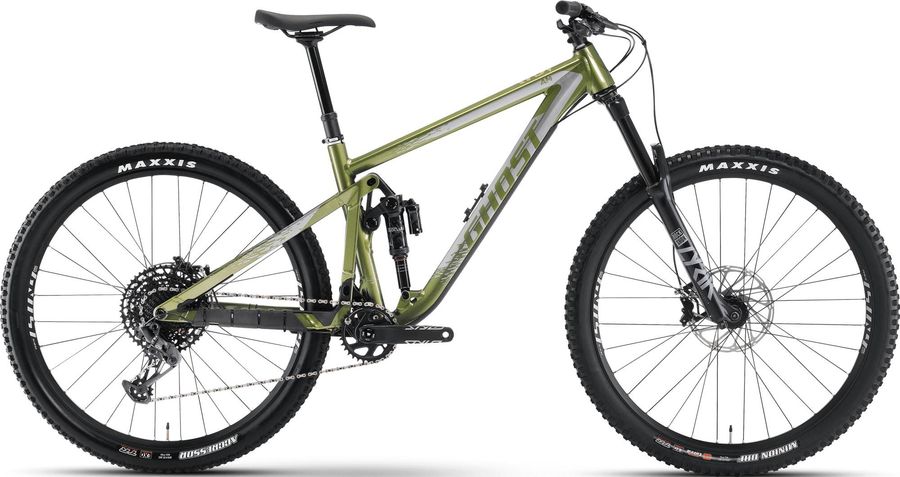

Ghost RIOT AM Universal 2021

About the Ghost RIOT AM Universal 2021

The Ghost RIOT AM Universal 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Ghost RIOT AM Universal 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
WTB Volt
Headset
Acros AZX-203
Seatpost
Limotec Alpha 1 34.9 mm 125 (S) 150 (M) 170 (L/XL)
Handlebar
Ground Fiftyone Dia. 31.8 mm 780/15 (S) 780/35 (M) 780/40 (L/XL)
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
Truvativ Stylo 7K 32T
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
RIOT AL
Front suspension
RockShox Lyrik Select+ DebonAir 2003 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SELP-C2
Name
Lyrik Select+
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
Rodi Tryp 30 584x30 (S) 622x30 (M-XL) mm 32H
Tires
Maxxis Minion DHF 3C MaxxTerra Exo 2.3
Rear hub
Fastace DA201-R 12x148 mm
Front hub
Fastace DA201-F 15x110 mm

Geometry

Size SM MD LG XL
a
Seat tube length
417,0
441,0
465,0
489,0
b
Seat tube angle
76,0º
77,0º
77,0º
77,0º
c
Top tube length
607,0
621,0
651,0
685,0
d
Head tube length
120,0
100,0
140,0
160,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
45,0
46,0
48,0
49,0
g
Trail
123,0
122,0
120,0
119,0
h
Wheelbase
1224,0
1271,0
1310,0
1349,0
i
Chainstay length
434,0
455,0
455,0
455,0
j
Bottom bracket drop
28,0
40,0
41,0
42,0
k
Stack height
619,0
624,0
660,0
679,0
l
Reach
453,0
482,0
502,0
531,0
m
Standover height
766,0
791,0
792,0
792,0
x
Bottom bracket height
327,0
315,0
314,0
313,0
y
Front center
791,0
819,0
858,0
897,0
