Ghost RIOT EN Essential 2021

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
160mm

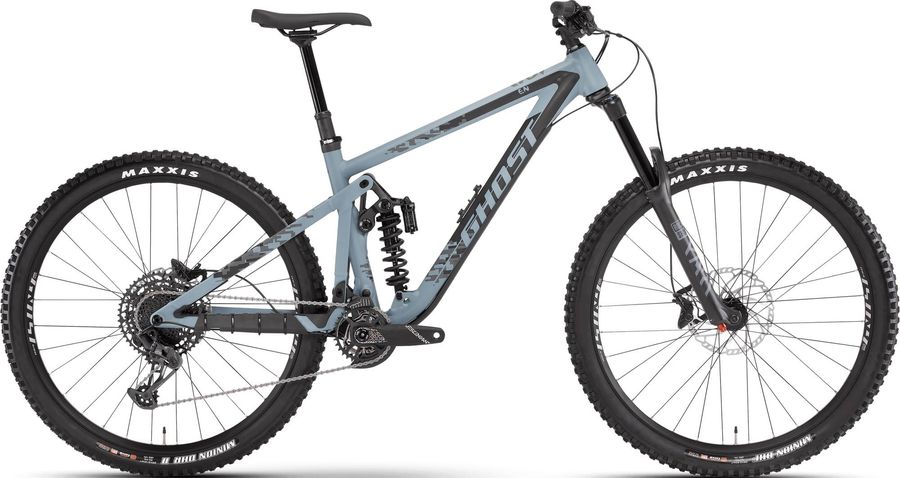

Ghost RIOT EN Essential 2021

About the Ghost RIOT EN Essential 2021

The Ghost RIOT EN Essential 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Ghost RIOT EN Essential 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
WTB Volt
Headset
Acros AZX-203
Seatpost
Limotec Alpha 1 34.9 mm 125 (S) 150 (M) 170 (L/XL)
Handlebar
Ground Fiftyone Dia. 31.8 mm 780/15 (S) 780/35 (M) 780/40 (L/XL)
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Truvativ Descendant 6K Eagle X-Sync 32T
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
RIOT AL
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe Coil Select 393 g
Body eyelet
No Bushing, Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-SEL-A2
Name
Super Deluxe Coil Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Weight based on
W/O coil spring, 210x50, MM tune, standard/standard
Weight
393
Wheels
Rims
Rodi Tryp 30 584x30 (S) 622x30 (M-XL) mm 32H
Tires
Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5
Rear hub
Fastace DA201-R 12x148 mm
Front hub
Fastace DA201-F 15x110 mm

Geometry

Size SM MD LG XL
a
Seat tube length
417,0
441,0
465,0
489,0
b
Seat tube angle
76,0º
77,0º
77,0º
77,0º
c
Top tube length
607,0
621,0
651,0
685,0
d
Head tube length
120,0
100,0
140,0
160,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
42,0
52,0
53,0
52,0
g
Trail
127,0
116,0
114,0
116,0
h
Wheelbase
1224,0
1276,0
1315,0
1353,0
i
Chainstay length
435,0
455,0
455,0
455,0
j
Bottom bracket drop
24,0
38,0
38,0
38,0
k
Stack height
619,0
627,0
663,0
681,0
l
Reach
453,0
477,0
498,0
528,0
m
Standover height
766,0
791,0
792,0
792,0
x
Bottom bracket height
331,0
317,0
317,0
317,0
y
Front center
790,0
823,0
862,0
900,0
