Ghost RIOT EN Universal 2021

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
160mm

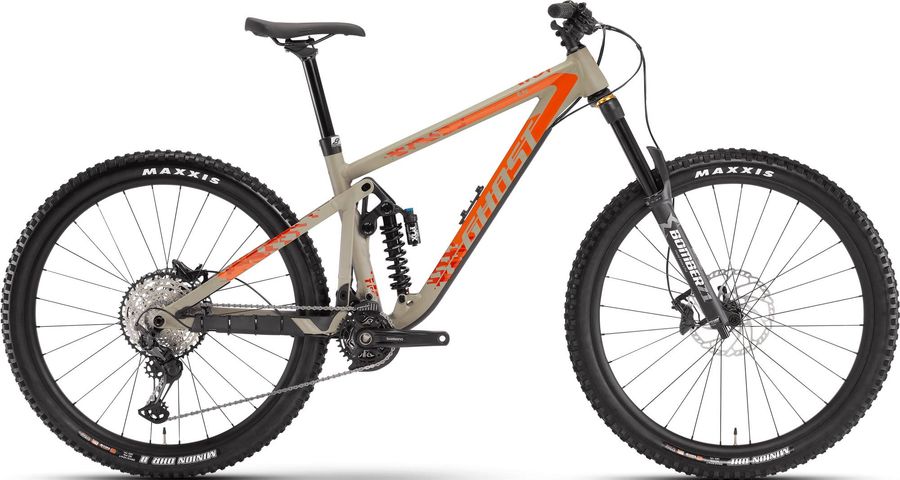

Ghost RIOT EN Universal 2021

About the Ghost RIOT EN Universal 2021

The Ghost RIOT EN Universal 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes.

Features

The Ghost RIOT EN Universal 2021 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
WTB Volt
Headset
Acros AZX-203
Seatpost
Eightpins hydraulic 34.9 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 780/15 (S) 780/35 (M) 780/40 (L/XL)
Brakes
Shimano BR-M6120 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M6120
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D02S Metal
Pad standard
D03S Resin
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano FC-MT510 32T
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
RIOT AL
Rear suspension
Fox Van Performance
Front suspension
Marzocchi Bomber Z1
Wheels
Rims
Syntace V30 15x110 mm
Tires
Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5

Geometry

Size SM MD LG XL
a
Seat tube length
417,0
441,0
465,0
489,0
b
Seat tube angle
76,0º
77,0º
77,0º
77,0º
c
Top tube length
607,0
621,0
651,0
685,0
d
Head tube length
120,0
100,0
140,0
160,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
42,0
52,0
53,0
52,0
g
Trail
127,0
116,0
114,0
116,0
h
Wheelbase
1224,0
1276,0
1315,0
1353,0
i
Chainstay length
435,0
455,0
455,0
455,0
j
Bottom bracket drop
24,0
38,0
38,0
38,0
k
Stack height
619,0
627,0
663,0
681,0
l
Reach
453,0
477,0
498,0
528,0
m
Standover height
766,0
791,0
792,0
792,0
x
Bottom bracket height
331,0
317,0
317,0
317,0
y
Front center
790,0
823,0
862,0
900,0
