Ghost RIOT Trail Essential 2021

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm

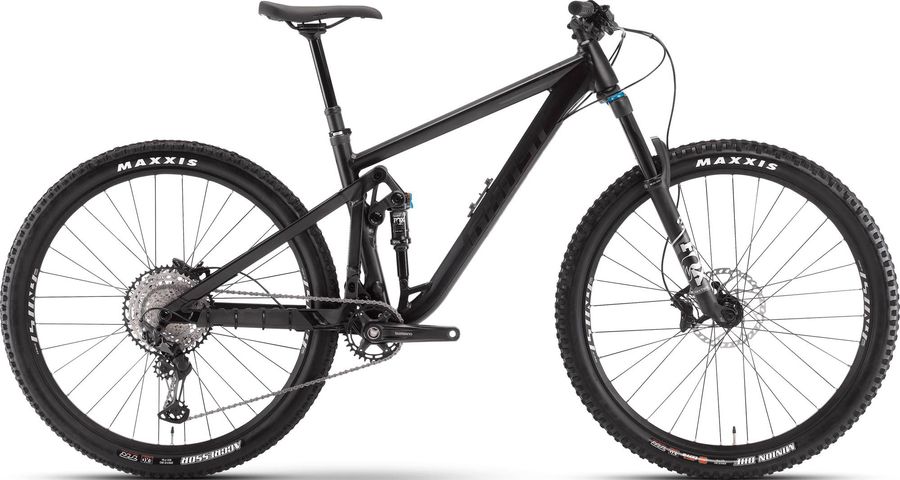

Ghost RIOT Trail Essential 2021

About the Ghost RIOT Trail Essential 2021

The Ghost RIOT Trail Essential 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Ghost RIOT Trail Essential 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
WTB Volt
Headset
Acros AZX-203
Seatpost
Limotec Alpha 1 34.9 mm 125 (S) 150 (M) 170 (L/XL)
Handlebar
Ground Fiftyone Dia. 31.8 mm 780/15 (S-L) 780/40 (XL)
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano FC-MT510 32T
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
RIOT AL
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Fox 34 Float Rhythm
Wheels
Rims
Rodi Tryp 30 584x30 (S) 622x30 (M-XL) mm 32H
Tires
Maxxis Minion DHF 3C MaxxTerra Exo 2.3
Rear hub
Fastace DR2116B 12x148 mm
Front hub
Fastace DF813 15x110 mm

Geometry

Size SM MD LG XL
a
Seat tube length
417,0
441,0
465,0
489,0
b
Seat tube angle
76,0º
77,0º
77,0º
77,0º
c
Top tube length
596,0
609,0
638,0
670,0
d
Head tube length
100,0
100,0
140,0
160,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
47,0
53,0
53,0
53,0
g
Trail
107,0
100,0
100,0
100,0
h
Wheelbase
1180,0
1230,0
1266,0
1303,0
i
Chainstay length
430,0
450,0
450,0
450,0
j
Bottom bracket drop
25,0
39,0
39,0
39,0
k
Stack height
587,0
615,0
652,0
670,0
l
Reach
449,0
467,0
487,0
516,0
m
Standover height
772,0
800,0
803,0
802,0
x
Bottom bracket height
330,0
316,0
316,0
316,0
y
Front center
751,0
783,0
819,0
856,0
