BikeWise

Ghost SL AMR 2.9 AL 2019

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
15,2 kg
Front travel
130mm
Rear travel
130mm

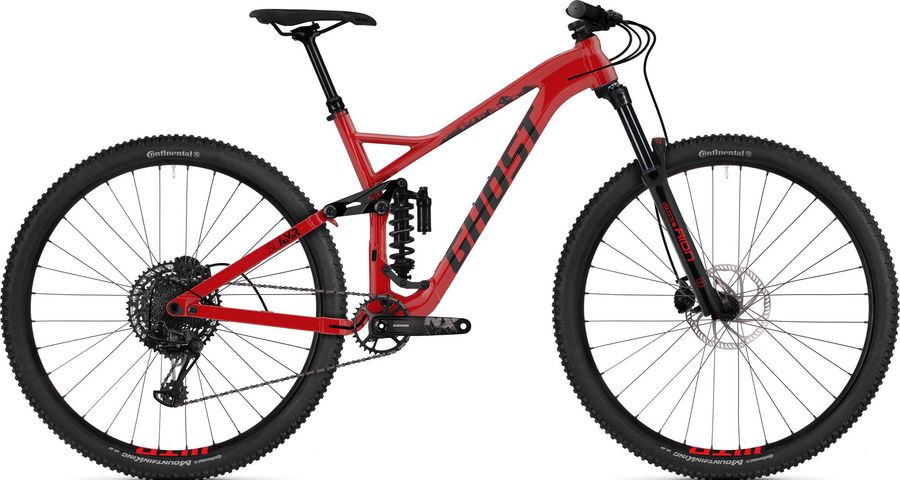

Ghost SL AMR 2.9 AL 2019

About the Ghost SL AMR 2.9 AL 2019

The Ghost SL AMR 2.9 AL 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include boost 148 e hydraulic disc brakes. The bike weighs approximately 15,2 kg.

Features

The Ghost SL AMR 2.9 AL 2019 has 2 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
SDG Fly Mountain
Headset
16012
Seatpost
Satori Sorata Pro 31.6 mm
Handlebar
Ground Fiftyone Race 780 mm Rise 15 mm Dia. 31.8 mm
Brakes
Tektro HD-M735
Drivetrain
Crankset
SRAM NX Eagle 32 T
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
SLAMR AL
Front suspension
SR Suntour Aion 34
Rear suspension
RockShox Super Deluxe Coil RCT
Body eyelet
Bearing, Standard, Trunnion
Compression tune
L, L1, M
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLC-RCT-A1
Name
Super Deluxe Coil RCT
Rebound tune
L, M
Shaft eyelet
Bearing, Standard
Wheels
Rims
WTB STp i29 32H
Tires
Continental Mountain King II PureGrip 29x2.4
Rear hub
Bear Hub BMB-008 12 x 148 mm
Front hub
Bear Hub BMT-009 15 x 100 mm

Geometry

Size SM MD LG XL
a
Seat tube length
420,0
460,0
480,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
568,0
593,0
618,0
651,0
d
Head tube length
100,0
105,0
110,0
120,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
25,0
52,0
53,0
53,0
g
Trail
136,0
106,0
105,0
105,0
h
Wheelbase
1121,0
1177,0
1203,0
1237,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
605,0
610,0
614,0
623,0
l
Reach
412,0
436,0
460,0
490,0
m
Standover height
746,0
757,0
759,0
791,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
683,0
739,0
765,0
799,0
