Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,8 kg
Front travel
140mm
Rear travel
130mm

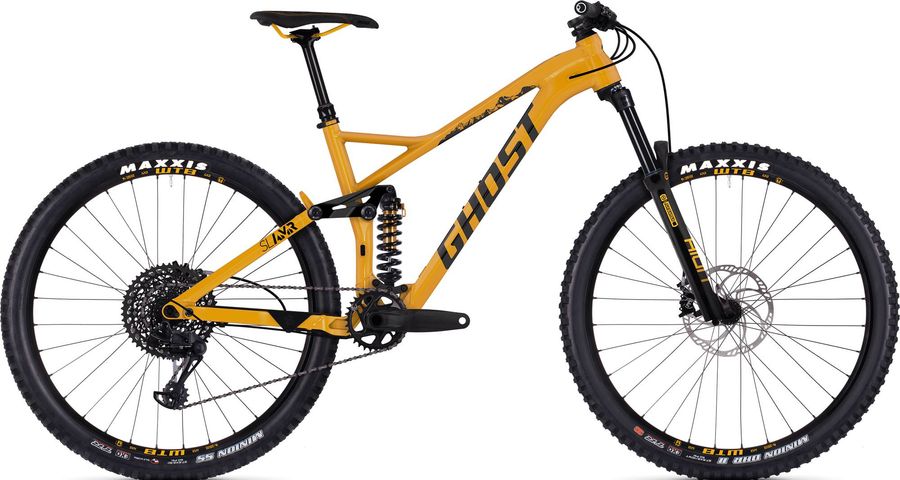

About the Ghost SL AMR 4.7 AL 2018
The Ghost SL AMR 4.7 AL 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 13,8 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Ergon
|
|---|
|
Steam
|
Ground Fiftyone Team Dia. 35 mm
|
|---|---|
|
Saddle
|
SDG Fly Mountain
|
|
Headset
|
16012
|
|
Seatpost
|
Satori Sorata Pro 31.6 mm
|
|
Handlebar
|
Ground Fiftyone Race Riser Bar 780 mm Rise 20 mm Dia. 35 mm
|
|
Brake lever
|
Magura MT Fifty 4
|
|
Brakes
|
Magura MT Fifty
|
|
Chain
|
SRAM, 12-speed
|
|---|---|
|
Crankset
|
Truvativ Descendant 6K Eagle X-Sync 34T
|
|
Shifter
|
SRAM NX Eagle, 12-speed
|
|
Bottom bracket
|
Press Fit 92
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
SLAMR AL
|
|---|---|
|
Front suspension
|
SR Suntour Aion 35
|
|
Rear suspension
|
Cane Creek DB Inline
|
|
Rims
|
WTB STp i29 584x29 mm 32H
|
|---|---|
|
Tires
|
Maxxis Minion DHR II 3C MaxxTerra Exo 27.5x2.4
|
|
Spokes
|
WTB STP i29
|
|
Rear hub
|
Formula GHL-360 12x142 mm
|
|
Front hub
|
Formula DC-711 15x110 mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
430,0
|
460,0
|
500,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
557,0
|
588,0
|
611,0
|
633,0
|
|
d
Head tube length
|
105,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
42,0
|
42,0
|
43,0
|
42,0
|
|
g
Trail
|
112,0
|
112,0
|
111,0
|
112,0
|
|
h
Wheelbase
|
1134,0
|
1166,0
|
1191,0
|
1214,0
|
|
i
Chainstay length
|
425,5
|
425,5
|
425,5
|
425,5
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
20,0
|
20,0
|
|
k
Stack height
|
583,0
|
587,0
|
596,0
|
605,0
|
|
l
Reach
|
405,0
|
435,0
|
455,0
|
475,0
|
|
m
Standover height
|
704,0
|
723,0
|
748,0
|
762,0
|
|
x
Bottom bracket height
|
335,0
|
335,0
|
335,0
|
335,0
|
|
y
Front center
|
709,0
|
741,0
|
766,0
|
789,0
|
