Ghost SL AMR 4.9 AL U 2020

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,7 kg
Front travel
140mm
Rear travel
130mm

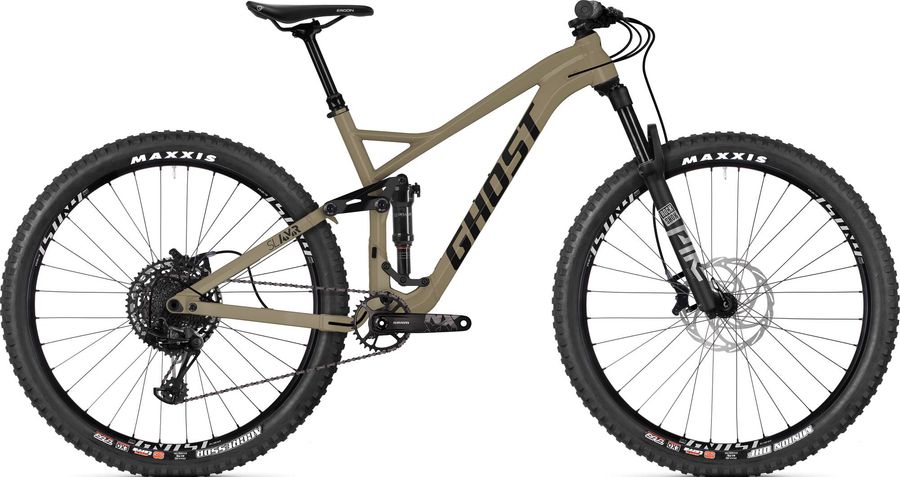

Ghost SL AMR 4.9 AL U 2020

About the Ghost SL AMR 4.9 AL U 2020

The Ghost SL AMR 4.9 AL U 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 14,7 kg.

Features

The Ghost SL AMR 4.9 AL U 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
Ergon SM Sport
Headset
16012
Seatpost
JD Dropper Post 31.6 mm
Handlebar
Ground Fiftyone 760 mm Rise 15 mm Dia. 31.8 mm
Brakes
Formula Cura 2
Drivetrain
Crankset
SRAM NX Eagle 32T
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
SLAMR AL
Front suspension
RockShox Pike Select RC
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
Rodi Wheelset 30 mm 15x110 mm
Tires
Maxxis Minion DHF 3C MaxxTerra Exo 29 x 2.3

Geometry

Size SM MD LG XL
a
Seat tube length
420,0
460,0
480,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
568,0
593,0
618,0
651,0
d
Head tube length
100,0
105,0
110,0
120,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
53,0
52,0
53,0
53,0
g
Trail
105,0
106,0
105,0
105,0
h
Wheelbase
1151,0
1177,0
1203,0
1237,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
605,0
610,0
614,0
623,0
l
Reach
412,0
436,0
460,0
490,0
m
Standover height
746,0
757,0
759,0
791,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
713,0
739,0
765,0
799,0
