Ghost SL AMR 6.9 LC 2019

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,8 kg
Front travel
130mm
Rear travel
130mm

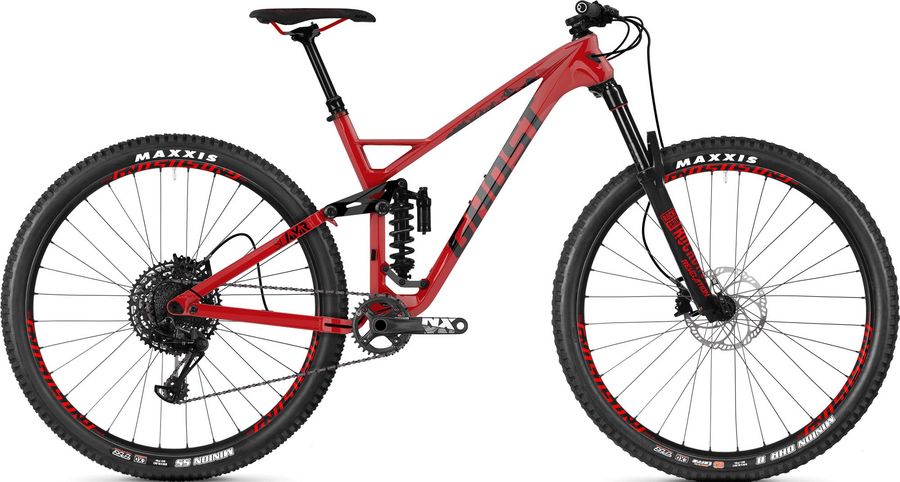

Ghost SL AMR 6.9 LC 2019

About the Ghost SL AMR 6.9 LC 2019

The Ghost SL AMR 6.9 LC 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 14,8 kg.

Features

The Ghost SL AMR 6.9 LC 2019 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Team 35 Dia. 35 mm
Saddle
SDG Fly Mountain
Headset
16012
Seatpost
Satori Sorata Pro 31.6 mm
Handlebar
Ground Fiftyone Race 35 780 mm Rise 20 mm Dia. 35 mm
Brakes
TRP G-Spec
Drivetrain
Crankset
Truvativ Descendant 6K Eagle X-Sync 32T
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
SLAMR LC
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Coil RCT
Body eyelet
Bearing, Standard, Trunnion
Compression tune
L, L1, M
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLC-RCT-A1
Name
Super Deluxe Coil RCT
Rebound tune
L, M
Shaft eyelet
Bearing, Standard
Wheels
Rims
Rodi Wheelset 30 mm 15 x 110 mm
Tires
Maxxis Minion DHR II MaxxTerra 29x2.30

Geometry

Size SM MD LG XL
a
Seat tube length
420,0
460,0
480,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
568,0
593,0
618,0
651,0
d
Head tube length
100,0
105,0
110,0
120,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
52,0
53,0
53,0
52,0
g
Trail
95,0
94,0
94,0
95,0
h
Wheelbase
1134,0
1160,0
1186,0
1219,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
613,0
617,0
622,0
631,0
l
Reach
410,0
434,0
458,0
488,0
m
Standover height
733,0
738,0
760,0
778,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
696,0
722,0
748,0
781,0
