BikeWise

Ghost SL AMR 8.7 AL 2018

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
13,1 kg
Front travel
140mm
Rear travel
130mm

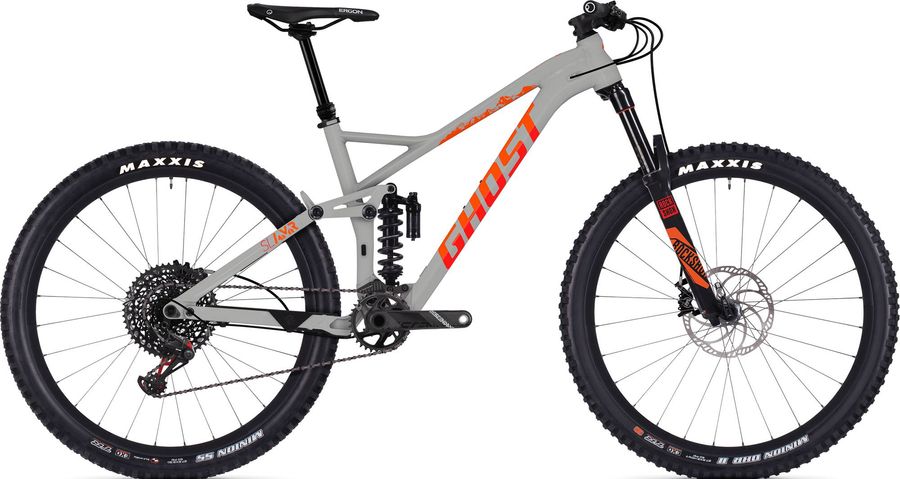

Ghost SL AMR 8.7 AL 2018

About the Ghost SL AMR 8.7 AL 2018

The Ghost SL AMR 8.7 AL 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 13,1 kg.

Features

The Ghost SL AMR 8.7 AL 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon
Components
Steam
Syntace Megaforce2 Dia. 31.8 mm
Saddle
Ergon SME30
Headset
16012
Seatpost
Kind Shock LEV SI 31.6 mm
Handlebar
Syntace Vector 780 mm Rise 20 mm Dia. 31.8 mm
Brake lever
Magura MT 7
Brakes
Magura MT7
Drivetrain
Chain
SRAM Eagle, 12-speed
Crankset
Truvativ Descendant Carbon Eagle X-Sync 34T
Shifter
SRAM GX Eagle, 12-speed
Chain guide
e*thirteen
Bottom bracket
Press Fit 92
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
SLAMR AL
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe Coil RCT
Body eyelet
Bearing, Standard, Trunnion
Compression tune
L, L1, M
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLC-RCT-A1
Name
Super Deluxe Coil RCT
Rebound tune
L, M
Shaft eyelet
Bearing, Standard
Wheels
Rims
Syntace W28i Wheelset 28 mm 15x110 mm
Tires
Maxxis Minion DHR II 3C MaxxTerra Exo 27.5x2.4

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
430,0
460,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
557,0
588,0
611,0
633,0
d
Head tube length
105,0
110,0
120,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
43,0
42,0
g
Trail
121,0
121,0
120,0
121,0
h
Wheelbase
1134,0
1166,0
1191,0
1214,0
i
Chainstay length
425,5
425,5
425,5
425,5
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
583,0
587,0
596,0
605,0
l
Reach
405,0
435,0
455,0
475,0
m
Standover height
704,0
723,0
748,0
762,0
x
Bottom bracket height
354,0
354,0
354,0
354,0
y
Front center
709,0
741,0
766,0
789,0
