Ghost SL AMR 8.7 AL U 2020

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,3 kg
Front travel
140mm
Rear travel
130mm

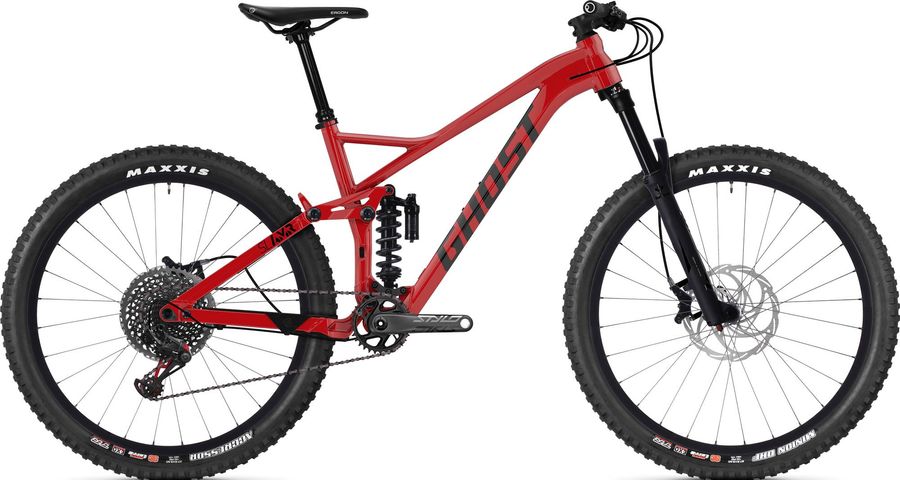

Ghost SL AMR 8.7 AL U 2020

About the Ghost SL AMR 8.7 AL U 2020

The Ghost SL AMR 8.7 AL U 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 14,3 kg.

Features

The Ghost SL AMR 8.7 AL U 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Syntace Megaforce2 Dia. 31.8 mm
Saddle
Ergon SM Sport
Headset
16012
Seatpost
Hodaka Dropper Post 31.6 mm
Handlebar
Syntace Vector 780 mm Rise 20 mm Dia. 31.8 mm
Brakes
Formula Cura 2
Drivetrain
Crankset
Truvativ Stylo 7K 32T
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Front suspension
Formula Selva S 140 mm
Frame
SLAMR AL
Rear suspension
RockShox Super Deluxe Coil Select+ 398 g
Body eyelet
Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLC-SELP-A2
Name
Super Deluxe Coil Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Weight based on
W/O coil spring, 210x50, MM tune, standard/standard
Weight
398
Wheels
Rims
Syntace W28i 15x110 mm
Tires
Maxxis Minion DHF 3C MaxxTerra Exo 27.5 x 2.3

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
430,0
460,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
557,0
588,0
611,0
633,0
d
Head tube length
105,0
110,0
120,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
43,0
42,0
g
Trail
112,0
112,0
111,0
112,0
h
Wheelbase
1134,0
1166,0
1191,0
1214,0
i
Chainstay length
425,5
425,5
425,5
425,5
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
583,0
587,0
596,0
605,0
l
Reach
405,0
435,0
455,0
475,0
m
Standover height
704,0
723,0
748,0
762,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
709,0
741,0
766,0
789,0
