Ghost SL AMR 9.9 LC U 2020

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,6 kg
Front travel
130mm
Rear travel
130mm

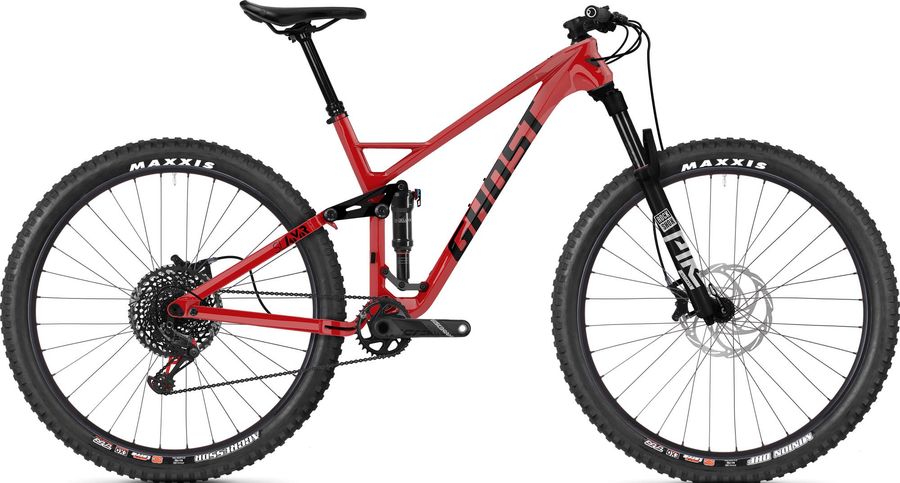

Ghost SL AMR 9.9 LC U 2020

About the Ghost SL AMR 9.9 LC U 2020

The Ghost SL AMR 9.9 LC U 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 13,6 kg.

Features

The Ghost SL AMR 9.9 LC U 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Team Dia. 31.8 mm
Saddle
Ergon SME3 Comp
Headset
16012
Seatpost
Hodaka Dropper Post 31.6 mm
Handlebar
Ground Fiftyone Race 780 mm Rise 15 mm Dia. 31.8 mm
Brakes
Formula Cura 2
Drivetrain
Crankset
Truvativ Stylo 7K 32T
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
SLAMR LC
Front suspension
RockShox Pike Ultimate RCT3
Rear suspension
RockShox Deluxe Ultimate 340 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-ULT-B2
Name
Deluxe Ultimate
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
Syntace W28i 15x110 mm
Tires
Maxxis Minion DHF 3C MaxxTerra Exo 29 x 2.3

Geometry

Size SM MD LG XL
a
Seat tube length
420,0
460,0
480,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
568,0
593,0
618,0
651,0
d
Head tube length
100,0
105,0
110,0
120,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
52,0
53,0
53,0
52,0
g
Trail
95,0
94,0
94,0
95,0
h
Wheelbase
1134,0
1160,0
1186,0
1219,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
613,0
617,0
622,0
631,0
l
Reach
410,0
434,0
458,0
488,0
m
Standover height
733,0
738,0
760,0
778,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
696,0
722,0
748,0
781,0
