Ghost SL AMR LC 3.7 2018

MTB Trail
Groupset
Shimano Deore
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

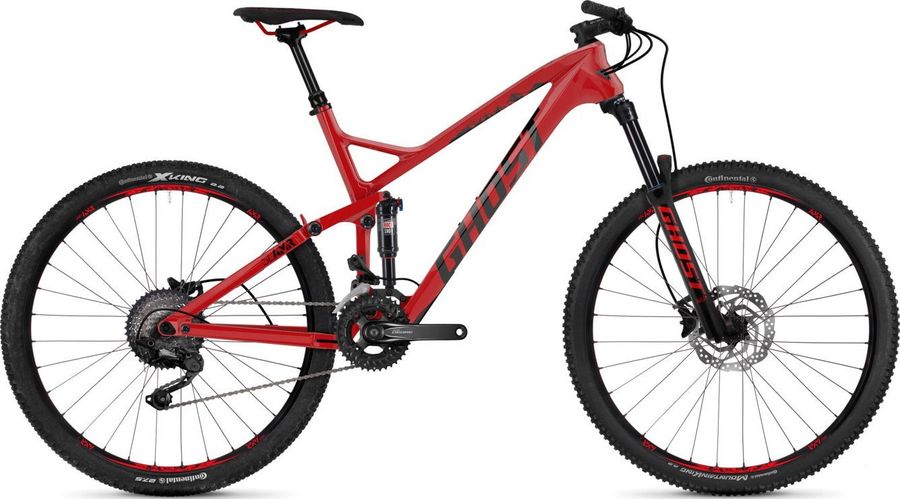

Ghost SL AMR LC 3.7 2018

About the Ghost SL AMR LC 3.7 2018

The Ghost SL AMR LC 3.7 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano Deore drivetrain. Its features include dropper seatpost e hydraulic disc brakes.

Features

The Ghost SL AMR LC 3.7 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone, 31.8mm clamp, 60mm length
Saddle
SDG Fly Mountain
Headset
16012
Seatpost
JD Dropper Post
Handlebar
Ground Fiftyone Race, 780mm width, 31.8mm clamp, 15mm rise
Brake lever
Shimano
Brakes
Shimano Altus BR-M365
Drivetrain
Crankset
Shimano Deore FC-M6000 Hollowtech II
Shifter
Shimano Deore SL-M6000
Bottom bracket
PressFit92
Front derailleur
Shimano Deore FD-M6020 Side Swing
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Carbon Fiber
Rear suspension
RockShox Monarch RT
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
320, 380
Model
RS-MNR-RT-D3
Name
Monarch RT
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Front suspension
SR Suntour Aion LO
Wheels
Rims
Rodi Tryp, 32 hole
Tires
Front: Continental Mountain King II PureGrip, 27.5" x 2.2", Rear: Continental X-King Performance PureGrip, 27.5" x 2.2"
Rear hub
Front: Formula GHL-360, 15x100, Rear: Formula DC-71, 12x142mm
Front hub
Front: Formula GHL-360, 15x100, Rear: Formula DC-71, 12x142mm

Geometry

Size SM MD LG XL
a
Seat tube length
440,0
470,0
500,0
540,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
582,0
608,0
634,0
650,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
47,0
47,0
46,0
43,0
g
Trail
93,0
93,0
94,0
97,0
h
Wheelbase
1132,0
1158,0
1184,0
1199,0
i
Chainstay length
436,0
436,0
436,0
436,0
j
Bottom bracket drop
16,0
16,0
16,0
16,0
k
Stack height
591,0
600,0
610,0
617,0
l
Reach
422,0
444,0
467,0
482,0
m
Standover height
731,0
746,0
781,0
811,0
x
Bottom bracket height
339,0
339,0
339,0
339,0
y
Front center
696,0
722,0
748,0
763,0
