Ghost SL AMR X 5.9 AL U 2020

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
15,8 kg
Front travel
150mm
Rear travel
145mm

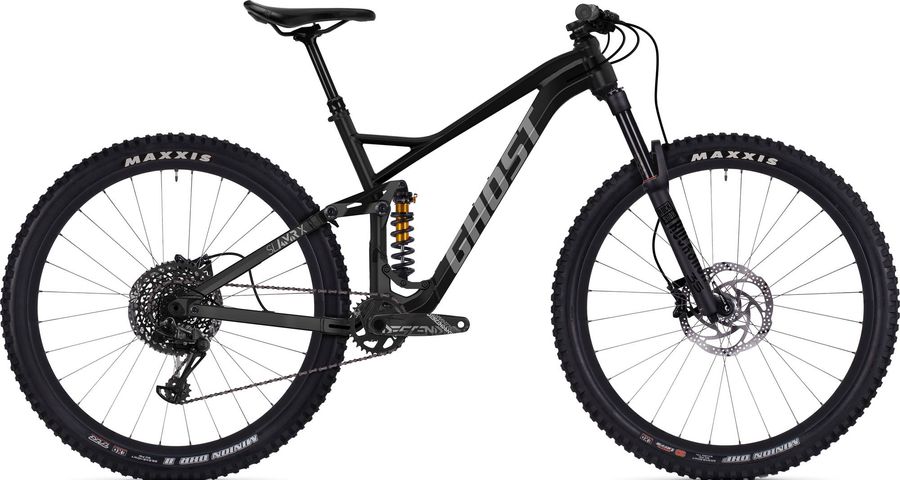

Ghost SL AMR X 5.9 AL U 2020

About the Ghost SL AMR X 5.9 AL U 2020

The Ghost SL AMR X 5.9 AL U 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 15,8 kg.

Features

The Ghost SL AMR X 5.9 AL U 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
Ergon SME3 Comp
Headset
16012
Seatpost
JD Dropper Post 31.6 mm
Handlebar
Ground Fiftyone Race 780 mm Rise 15 mm Dia. 31.8 mm
Brakes
TRP G-Spec
Drivetrain
Crankset
Truvativ Descendant 6K Eagle X-Sync 32T
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Frameset
Frame
SLAMR AL
Rear suspension
Cane Creek DB Inline
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Syntace V30 15x110 mm
Tires
Maxxis Minion DHF 3C MaxxTerra Exo 29x2.5

Geometry

Size SM MD LG XL
a
Seat tube length
420,0
460,0
480,0
500,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
572,0
598,0
624,0
658,0
d
Head tube length
100,0
105,0
110,0
120,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
53,0
52,0
52,0
52,0
g
Trail
112,0
114,0
114,0
114,0
h
Wheelbase
1160,0
1186,0
1212,0
1246,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
k
Stack height
612,0
618,0
622,0
631,0
l
Reach
401,0
425,0
449,0
479,0
m
Standover height
756,0
767,0
769,0
801,0
x
Bottom bracket height
344,0
344,0
344,0
344,0
y
Front center
721,0
747,0
773,0
807,0
