Giant Anthem 1 NX Eagle 2019

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm

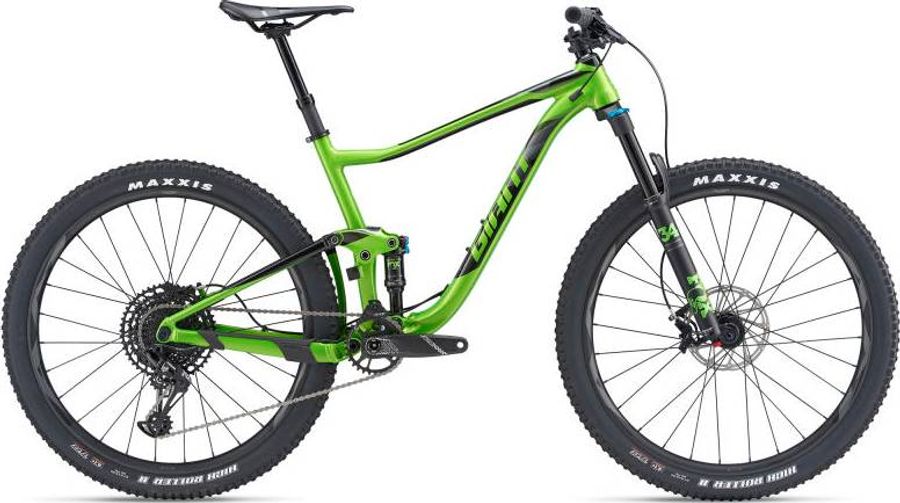

Giant Anthem 1 NX Eagle 2019

About the Giant Anthem 1 NX Eagle 2019

The Giant Anthem 1 NX Eagle 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Anthem 1 NX Eagle 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Giant Contact
Saddle
Giant Contact (neutral)
Seatpost
Giant Contact Switch dropper post with remote lever, 30.9mm
Handlebar
Giant Contact Trail, 780 x 31.8mm
Brake lever
SRAM Guide T
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
TruVativ Descendent 6k Eagle Dub, 30
Shifter
SRAM NX Eagle, 1x12
Bottom bracket
SRAM GXP Dub Press Fit
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM NX Eagle
Frameset
Frame
ALUXX SL-Grade Aluminum
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 34 Performance
Wheels
Rims
Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width
Tires
Maxxis high Roller II 27.5x2.3, 60 tpi, EXO, TR, tubeless
Spokes
Sapim
Rear hub
[F] Giant Tracker Performance Boost 15x110mm, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing
Front hub
[F] Giant Tracker Performance Boost 15x110mm, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
440,0
490,0
535,0
b
Seat tube angle
72,9º
72,9º
72,9º
72,9º
c
Top tube length
592,0
612,0
632,0
652,0
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
67,4º
67,4º
67,4º
67,4º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
102,0
102,0
102,0
102,0
h
Wheelbase
1121,0
1141,0
1162,0
1183,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
21,0
21,0
21,0
21,0
k
Stack height
581,0
586,0
595,0
604,0
l
Reach
418,0
436,0
453,0
470,0
m
Standover height
721,0
744,0
781,0
813,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
687,0
707,0
728,0
749,0
