Giant Anthem 3 2017

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
110mm

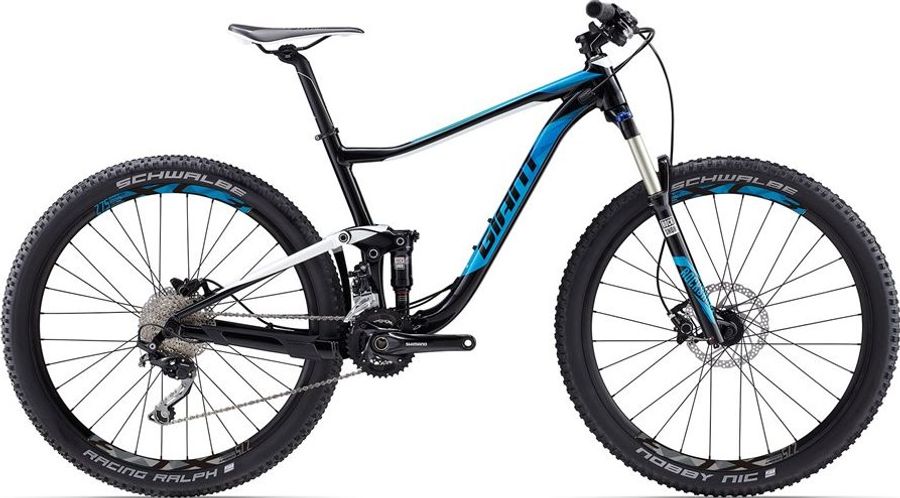

Giant Anthem 3 2017

About the Giant Anthem 3 2017

The Giant Anthem 3 2017 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include boost 148 e hydraulic disc brakes.

Features

The Giant Anthem 3 2017 has 2 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Connect
Saddle
Giant Contact Neutral
Seatpost
Giant Connect, 30.9mm
Handlebar
Giant Connect Trail, 31.8mm
Brake lever
Shimano M365
Brakes
Shimano Altus BR-M365
Drivetrain
Crankset
Shimano M627, 22/36
Shifter
Shimano Deore
Bottom bracket
Shimano, Press fit
Front derailleur
Shimano Deore
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
ALUXX SL-grade aluminum, Advanced Forged composite upper rocker, 110mm Maestro suspension
Front suspension
RockShox 30 Gold RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
58, 62
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-30G-RL-A2
Name
30 Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
26", 27.5", 29"
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
Giant XC-3
Tires
[F] Schwalbe Nobby Nic, 27.5x2.25, Performance, Wire [R] Schwalbe Racing Ralph, 27.5x2.25, Performance, Wire
Spokes
Stainless Steel, 14g
Rear hub
Giant Sport Tracker Disc, [F] QR 28h, [R] Boost 148x12mm 32h
Front hub
Giant Sport Tracker Disc, [F] QR 28h, [R] Boost 148x12mm 32h

Geometry

Size XS SM MD LG XL
a
Seat tube length
370,0
390,0
440,0
490,0
535,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
569,0
589,0
609,0
629,0
649,0
d
Head tube length
95,0
95,0
100,0
110,0
120,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
98,0
98,0
98,0
98,0
98,0
h
Wheelbase
1093,0
1113,0
1133,0
1154,0
1175,0
i
Chainstay length
432,0
432,0
432,0
432,0
432,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
25,0
k
Stack height
573,0
573,0
578,0
587,0
596,0
l
Reach
400,0
420,0
439,0
456,0
473,0
m
Standover height
693,0
711,0
735,0
773,0
805,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
662,0
682,0
702,0
723,0
744,0
