Giant Anthem Advanced 1 2017

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
110mm

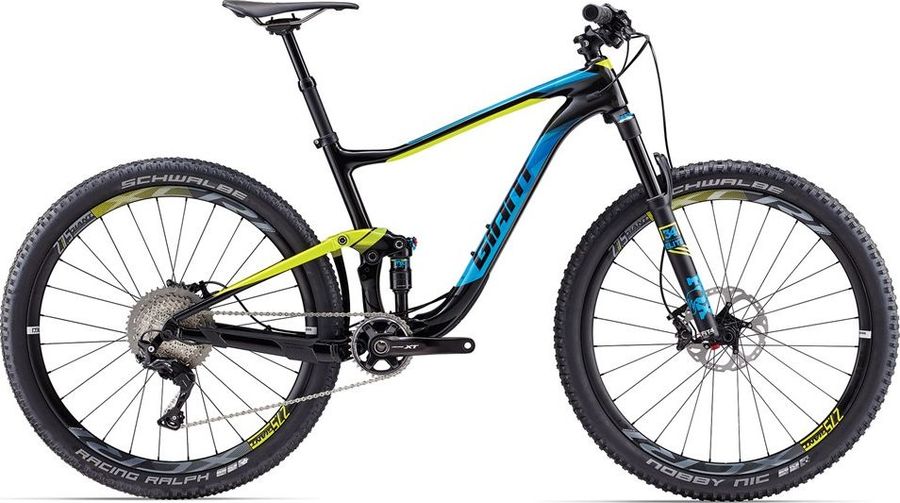

Giant Anthem Advanced 1 2017

About the Giant Anthem Advanced 1 2017

The Giant Anthem Advanced 1 2017 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Giant Anthem Advanced 1 2017 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact SL
Saddle
Giant Contact SL Neutral, SST tubular rails
Seatpost
Giant Contact SL Switch-R, 30.9mm
Handlebar
Giant Contact SL Trail, 31.8mm
Brake lever
Shimano Deore XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano Deore XT, 32T
Shifter
Shimano Deore XT
Bottom bracket
Shimano, Press fit
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
Advanced-grade composite w/ ALUXX SL rear triangle, Advanced Forged composite upper rocker, 110mm Maestro suspension
Rear suspension
Fox Float Performance Elite
Front suspension
Fox 34 Float Performance Elite
Wheels
Rims
Giant XCR 1 Composite DBL WheelSystem; 21mm wide, Tubeless compatible
Tires
[F] Schwalbe Nobby Nic, 27.5x2.25, Snakeskin, TL Easy, Trailstar [R] Schwalbe Racing Ralph, 27.5x2.25, Snakeskin, TL Easy, Pacestar
Spokes
Giant XCR 1 Composite DBL WheelSystem; Sapim Laser
Rear hub
Giant XCR 1 Composite DBL WheelSystem; 28h, [F] Boost 110x15mm, [R] Boost 148x12mm
Front hub
Giant XCR 1 Composite DBL WheelSystem; 28h, [F] Boost 110x15mm, [R] Boost 148x12mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
370,0
390,0
440,0
490,0
535,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
569,0
589,0
609,0
629,0
649,0
d
Head tube length
95,0
95,0
100,0
110,0
120,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
98,0
98,0
98,0
98,0
98,0
h
Wheelbase
1093,0
1113,0
1133,0
1154,0
1175,0
i
Chainstay length
432,0
432,0
432,0
432,0
432,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
25,0
k
Stack height
573,0
573,0
578,0
587,0
596,0
l
Reach
400,0
420,0
439,0
456,0
473,0
m
Standover height
693,0
711,0
735,0
773,0
805,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
662,0
682,0
702,0
723,0
744,0
