Giant Anthem Advanced 2 2017

MTB Cross Country
Groupset
SRAM X1
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
110mm

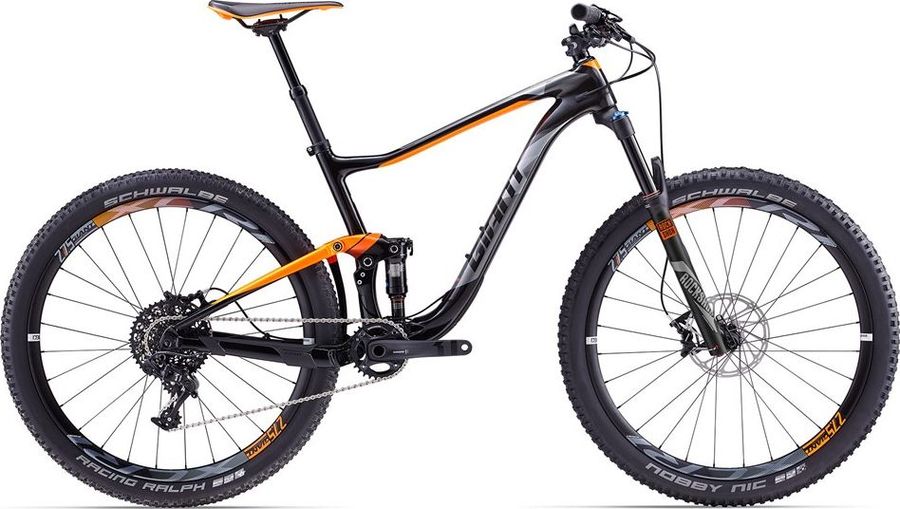

Giant Anthem Advanced 2 2017

About the Giant Anthem Advanced 2 2017

The Giant Anthem Advanced 2 2017 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X1 drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Giant Anthem Advanced 2 2017 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact
Saddle
Giant Contact Neutral
Seatpost
Giant Contact SL Switch-R, 30.9mm
Handlebar
Giant Contact Trail, 31.8mm
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM X1, 30T
Shifter
SRAM X1
Bottom bracket
SRAM GXP, Press fit
Cassette
SRAM XG-1175 11s 325 g
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1175-A1
Name
XG-1175 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Weight
325
Rear derailleur
SRAM X1 X-HORIZON Rear Derailleur 11s 256 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black
Max tooth
42
Model
RD-X-1-A2
Name
X1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
256
Chain
KMC X11
Frameset
Frame
Advanced-grade composite w/ ALUXX SL rear triangle, Advanced Forged composite upper rocker, 110mm Maestro suspension
Front suspension
RockShox Revelation RL
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
Giant XCR 1 Composite DBL WheelSystem; 21mm wide, Tubeless compatible
Tires
[F] Schwalbe Nobby Nic, 27.5x2.25, Snakeskin, TL Easy, Trailstar [R] Schwalbe Racing Ralph, 27.5x2.25, Snakeskin, TL Easy, Pacestar
Spokes
Giant XCR 1 Composite DBL WheelSystem; Sapim Laser
Rear hub
Giant XCR 1 Composite DBL WheelSystem; 28h, [F] Boost 110x15mm, [R] Boost 148x12mm
Front hub
Giant XCR 1 Composite DBL WheelSystem; 28h, [F] Boost 110x15mm, [R] Boost 148x12mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
370,0
390,0
440,0
490,0
535,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
569,0
589,0
609,0
629,0
649,0
d
Head tube length
95,0
95,0
100,0
110,0
120,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
98,0
98,0
98,0
98,0
98,0
h
Wheelbase
1093,0
1113,0
1133,0
1154,0
1175,0
i
Chainstay length
432,0
432,0
432,0
432,0
432,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
25,0
k
Stack height
573,0
573,0
578,0
587,0
596,0
l
Reach
400,0
420,0
439,0
456,0
473,0
m
Standover height
693,0
711,0
735,0
773,0
805,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
662,0
682,0
702,0
723,0
744,0
