Giant Anthem Advanced Pro 29 1 2020
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
90mm

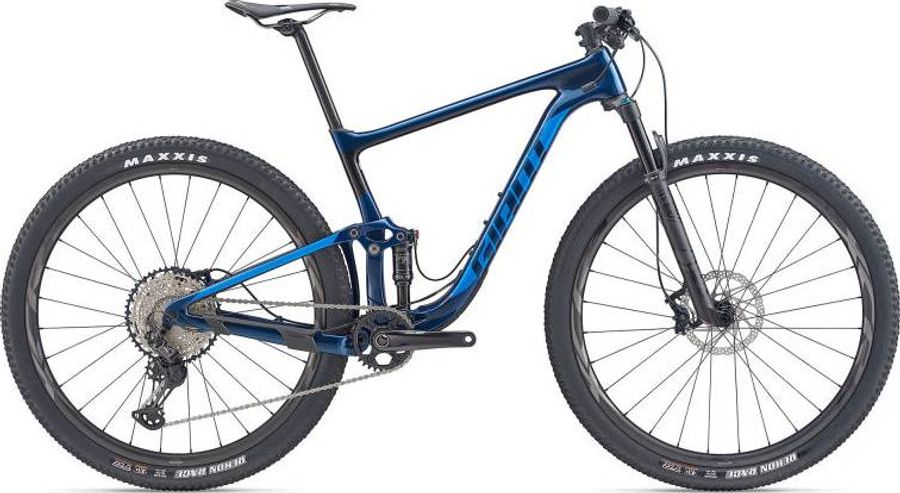

About the Giant Anthem Advanced Pro 29 1 2020
The Giant Anthem Advanced Pro 29 1 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and tapered head tube.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Remote lockout
More info
Remote lockout
Specifications
|
Steam
|
Giant Contact SL
|
|---|---|
|
Saddle
|
Contact SL (forward)
|
|
Seatpost
|
Giant Contact, composite, 27.2mm
|
|
Handlebar
|
Giant Contact SL XC Flat, 780x31.8
|
|
Brake lever
|
Shimano SLX
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Chain
|
Shimano
|
|---|---|
|
Crankset
|
Shimano Deore XT, 32t
|
|
Shifter
|
Shimano Deore XT, 1x12 I-spec EV
|
|
Bottom bracket
|
Shimano, press fit
|
|
Rear derailleur
|
Shimano Deore RD-M6100
SGS
12s
|
|
|
|
|
Cassette
|
Shimano SLX CS-M7100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 534g |
|
|
Frame
|
Advanced-Grade Composite front and rear triangles, 90mm
|
|---|---|
|
Front suspension
|
Fox 32 SC Float Performance Elite
|
|
Rear suspension
|
Fox Float DPS Performance Elite
|
|
Rims
|
Giant XCR-1 29 Composite WheelSystem
|
|---|---|
|
Tires
|
Maxxis Recon Race 29x2.25, foldable, TLR, EXO, tubeless
|
|
Spokes
|
Giant XCR-1 29 WheelSystem
|
|
Rear hub
|
Giant XCR-1 29 WheelSystem
|
|
Front hub
|
Giant XCR-1 29 WheelSystem
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
440,0
|
490,0
|
535,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
597,0
|
617,0
|
637,0
|
657,0
|
|
d
Head tube length
|
95,0
|
95,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
88,9
|
88,9
|
89,0
|
89,0
|
|
h
Wheelbase
|
1120,0
|
1140,0
|
1161,0
|
1182,0
|
|
i
Chainstay length
|
445,0
|
445,0
|
445,0
|
445,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
592,0
|
592,0
|
601,0
|
611,0
|
|
l
Reach
|
424,0
|
444,0
|
461,0
|
478,0
|
|
m
Standover height
|
754,0
|
787,0
|
824,0
|
850,0
|
|
x
Bottom bracket height
|
329,0
|
329,0
|
329,0
|
329,0
|
|
y
Front center
|
679,0
|
699,0
|
720,0
|
741,0
|
