BikeWise

Giant Anthem Advanced SX 2017

MTB Trail
Groupset
SRAM X1
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm

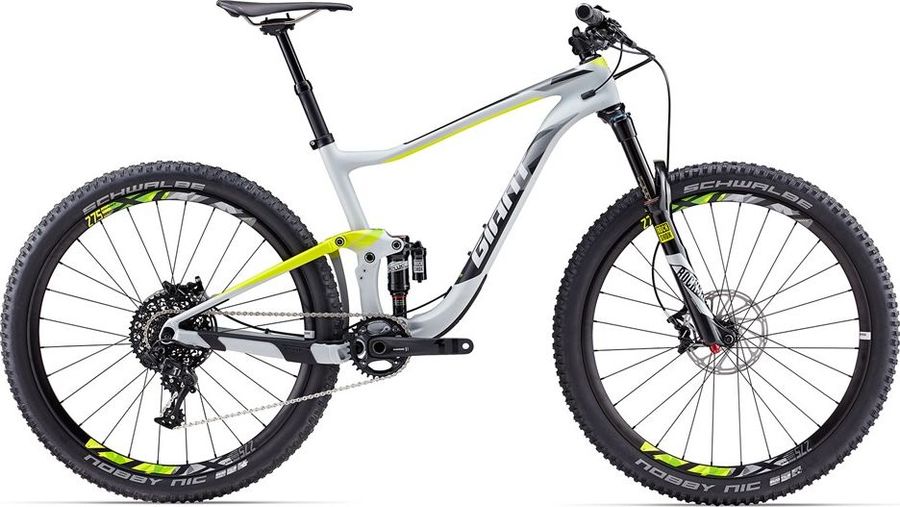

Giant Anthem Advanced SX 2017

About the Giant Anthem Advanced SX 2017

The Giant Anthem Advanced SX 2017 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X1 drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Giant Anthem Advanced SX 2017 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Truvativ Holzfeller
Saddle
Giant Contact SL, Neutral
Seatpost
Giant Contact SL Switch-R, 30.9mm
Handlebar
Giant Contact SLR Trail, Composite, 31.8mm
Brake lever
SRAM Guide RS
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Crankset
SRAM X1, 32T
Shifter
SRAM X1
Bottom bracket
SRAM, Press fit
Cassette
SRAM XG-1175 11s 325 g
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1175-A1
Name
XG-1175 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Weight
325
Rear derailleur
SRAM X1 X-HORIZON Rear Derailleur 11s 256 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black
Max tooth
42
Model
RD-X-1-A2
Name
X1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
256
Chain
KMC X11
Frameset
Frame
Advanced-grade composite w/ ALUXX SL rear
Rear suspension
RockShox Super Deluxe RC3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L1, L3, M
Eye to eye stroke
165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RC3-B1
Name
Super Deluxe RC3
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
Giant XCT-1 Alloy DBL Wheelsystem; 29mm wide, Tubeless compatible
Tires
[F] Schwalbe Nobby Nic 27.5x2.35 Snakeskin TL Easy Trailstar [R] Schwalbe Nobby Nic 27.5x2.25 Snakeskin TL Easy Pacestar
Spokes
Giant XCT-1 Alloy WheelSystem; Sapim Race TCS
Rear hub
Giant XCT-1 Alloy Wheelsystem; 28h, [F] Boost 15x110 [R] Boost 12x148
Front hub
Giant XCT-1 Alloy Wheelsystem; 28h, [F] Boost 15x110 [R] Boost 12x148

Geometry

Size XS SM MD LG XL
a
Seat tube length
370,0
390,0
440,0
490,0
535,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
570,0
590,0
610,0
630,0
650,0
d
Head tube length
95,0
95,0
100,0
110,0
120,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
67,5º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
101,0
101,0
101,0
101,0
101,0
h
Wheelbase
1097,0
1116,0
1137,0
1158,0
1179,0
i
Chainstay length
432,0
432,0
432,0
432,0
432,0
j
Bottom bracket drop
22,0
22,0
22,0
22,0
22,0
k
Stack height
577,0
577,0
582,0
591,0
600,0
l
Reach
396,0
416,0
434,0
456,0
469,0
m
Standover height
704,0
715,0
739,0
777,0
808,0
x
Bottom bracket height
333,0
333,0
333,0
333,0
333,0
y
Front center
666,0
685,0
706,0
727,0
748,0
