BikeWise

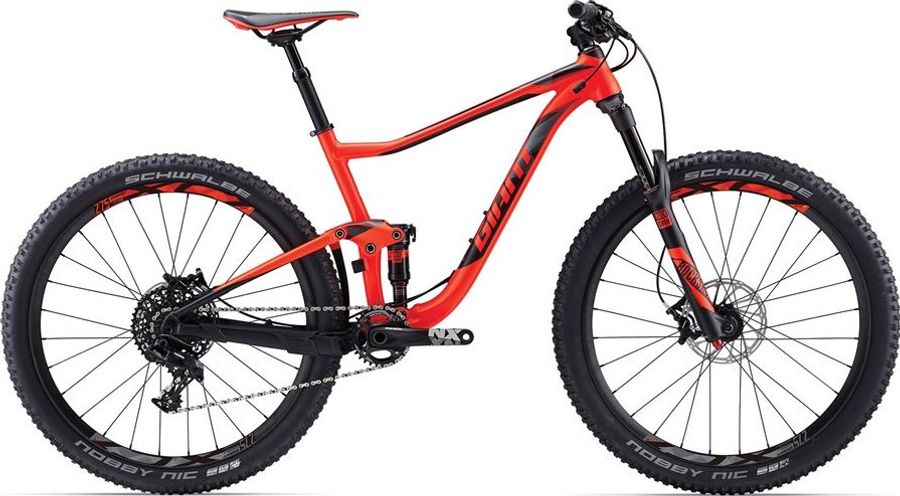

Giant Anthem SX 2 2017

MTB Cross Country
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
110mm
Giant Anthem SX 2 2017

About the Giant Anthem SX 2 2017

The Giant Anthem SX 2 2017 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 148 e hydraulic disc brakes.

Features

The Giant Anthem SX 2 2017 has 2 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Truvativ Holzfeller
Saddle
Giant Contact Neutral
Seatpost
Giant Contact SL Switch-R, 30.9mm
Handlebar
Giant Contact Trail, 31.8mm
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM NX, 30T
Shifter
SRAM NX
Bottom bracket
SRAM GXP, Press fit
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
KMC X11
Frameset
Frame
ALUXX SL-grade aluminum, Advanced Forged composite upper rocker, 110mm Maestro suspension
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
Giant XC-1
Tires
[F] Schwalbe Nobby Nic, 27.5x2.35, Snakeskin, TL Easy, Trailstar [R] Schwalbe Nobby Nic, 27.5x2.25, Snakeskin, TL Easy, Pacestar
Spokes
Sapim Race, 14/15g
Rear hub
Giant Performance Tracker Disc, 28h, [F] 15mm thru-axle 2, [R] Boost 148x12mm
Front hub
Giant Performance Tracker Disc, 28h, [F] 15mm thru-axle 2, [R] Boost 148x12mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
370,0
390,0
440,0
490,0
535,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
570,0
590,0
610,0
630,0
650,0
d
Head tube length
95,0
95,0
100,0
110,0
120,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
67,5º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
101,0
101,0
101,0
101,0
101,0
h
Wheelbase
1097,0
1116,0
1137,0
1158,0
1179,0
i
Chainstay length
432,0
432,0
432,0
432,0
432,0
j
Bottom bracket drop
22,0
22,0
22,0
22,0
22,0
k
Stack height
577,0
577,0
582,0
591,0
600,0
l
Reach
396,0
416,0
434,0
456,0
469,0
m
Standover height
704,0
715,0
739,0
777,0
808,0
x
Bottom bracket height
333,0
333,0
333,0
333,0
333,0
y
Front center
666,0
685,0
706,0
727,0
748,0
