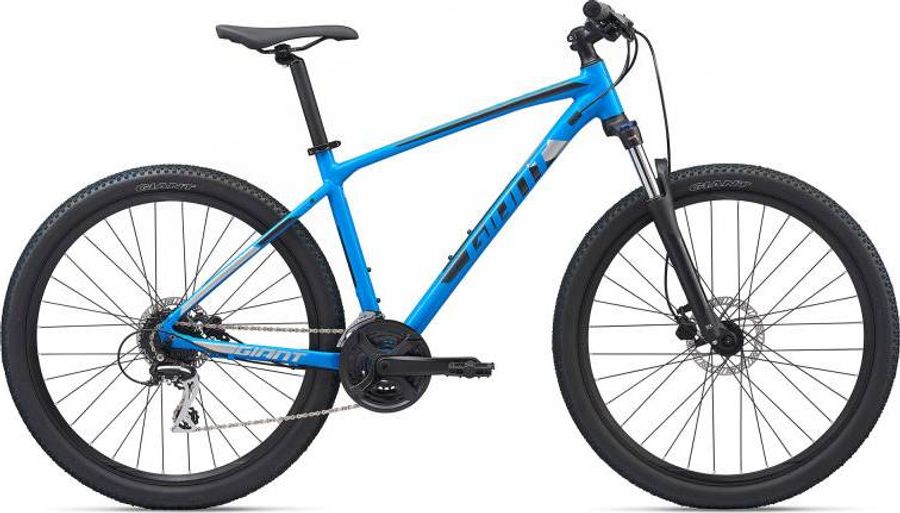

Giant ATX 1 2020

MTB Cross Country
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,1 kg
Front travel
100mm
Giant ATX 1 2020

About the Giant ATX 1 2020

The Giant ATX 1 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes. The bike weighs approximately 14,1 kg.

Features

The Giant ATX 1 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
platform
Components
Steam
Giant Sport, alloy, 10-degree
Saddle
Giant custom
Seatpost
Giant Sport, 30.9
Handlebar
Giant Connect XC, 31.8
Brake lever
Tektro HDC M275
Brakes
Tektro HD-M275
Drivetrain
Crankset
Prowheel forged, 24/34/42
Shifter
Shimano SL-M315 8 speed
Bottom bracket
cartridge
Front derailleur
Shimano Tourney
Chain
KMC Z8
Cassette
Shimano Altus CS-HG200-8 HG
Combination names
12-32T
Compatible chain
HG 8-speed
Lock ring finish
Painted
Lock ring material
Steel
Model
CS-HG200-8
Steel gear finish
Phosphate coated
Steel gear pieces
8
Type
HG
Rear derailleur
Shimano Acera RD-M360 SGS 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-M360-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/13T
Pulley cage
SGS
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
ALUXX-Grade Aluminum, disc
Front suspension
SR Suntour XCT 30 HLO
Wheels
Rims
Giant GX03V, alloy, double wall, 21mm inner width
Tires
Giant QuickCross, 27.5x2.1
Spokes
stainless, 14g
Rear hub
alloy, sealed bearing
Front hub
alloy, sealed bearing

Geometry

Size SM MD LG
a
Seat tube length
420,0
455,0
505,0
b
Seat tube angle
73,5º
73,0º
73,0º
c
Top tube length
578,0
593,0
613,0
d
Head tube length
95,0
110,0
145,0
e
Head tube angle
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
g
Trail
92,5
92,5
92,5
h
Wheelbase
1083,0
1094,0
1117,0
i
Chainstay length
438,0
438,0
438,0
j
Bottom bracket drop
50,0
50,0
50,0
k
Stack height
584,0
598,0
631,0
l
Reach
406,0
411,0
421,0
m
Standover height
724,0
750,0
792,0
x
Bottom bracket height
305,0
305,0
305,0
y
Front center
650,0
661,0
684,0
