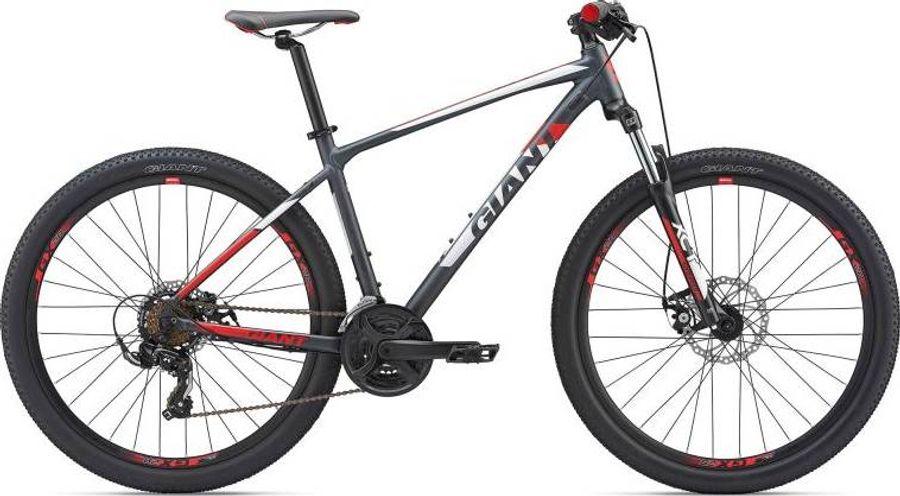

Giant ATX 2 2019
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
26" / 27,5"
Suspension type
Hardtail
Front travel
100mm
About the Giant ATX 2 2019
The Giant ATX 2 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 21 gears (3x7).
Specifications
|
Steam
|
Giant Sport alloy, 10-degree
|
|---|---|
|
Saddle
|
Giant Connect (upright)
|
|
Seatpost
|
Giant Sport, 30.9x350mm
|
|
Handlebar
|
Giant Sport XC, 31.8, alloy
|
|
Brake lever
|
Shimano EF41
|
|
Brakes
|
Tektro TKD 172
|
|
Crankset
|
ProWheel forged, 24/34/42
|
|---|---|
|
Shifter
|
Shimano EF41, 3x7
|
|
Bottom bracket
|
cartridge
|
|
Front derailleur
|
Shimano Tourney
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Chain
|
KMC Z51
|
|
Cassette
|
Shimano MF-TZ500
|
|
Frame
|
ALUXX-Grade Aluminum
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
Giant GX28 disc wheelset
|
|---|---|
|
Tires
|
Giant Quickcross 27.5x2.1/26x2.1
|
Geometry
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
350,0
|
385,0
|
420,0
|
455,0
|
505,0
|
535,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
556,0
|
566,0
|
576,0
|
591,0
|
611,0
|
631,0
|
|
d
Head tube length
|
95,0
|
105,0
|
95,0
|
110,0
|
145,0
|
170,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
92,0
|
92,0
|
92,0
|
92,0
|
92,0
|
92,0
|
|
h
Wheelbase
|
1066,0
|
1077,0
|
1081,0
|
1092,0
|
1115,0
|
1137,0
|
|
i
Chainstay length
|
421,0
|
421,0
|
436,0
|
436,0
|
436,0
|
436,0
|
|
j
Bottom bracket drop
|
35,0
|
35,0
|
50,0
|
50,0
|
50,0
|
50,0
|
|
k
Stack height
|
557,0
|
566,0
|
582,0
|
596,0
|
629,0
|
652,0
|
|
l
Reach
|
391,0
|
399,0
|
404,0
|
409,0
|
419,0
|
432,0
|
|
m
Standover height
|
689,0
|
711,0
|
722,0
|
748,0
|
790,0
|
815,0
|
|
x
Bottom bracket height
|
308,0
|
308,0
|
305,0
|
305,0
|
305,0
|
305,0
|
|
y
Front center
|
647,0
|
658,0
|
650,0
|
661,0
|
684,0
|
706,0
|
