Giant ATX 2 2020

Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
26" / 27,5"
Suspension type
Hardtail
Weight
14 kg
Front travel
100mm

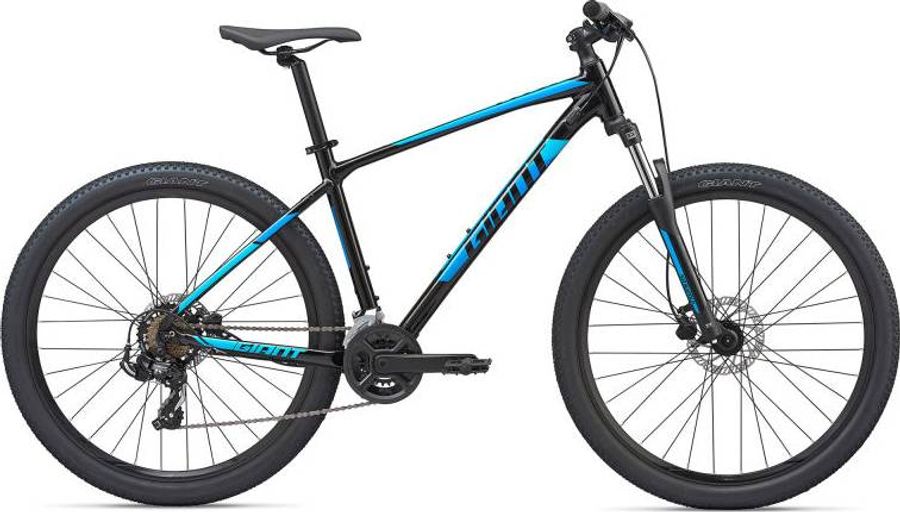

Giant ATX 2 2020

About the Giant ATX 2 2020

The Giant ATX 2 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 14 gears (2x7). Its features include hydraulic disc brakes. The bike weighs approximately 14 kg.


Features

The Giant ATX 2 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
Platform MTB
Components
Steam
Giant Sport, alloy, 10-degree
Saddle
Giant Sport Comfort
Seatpost
Giant Sport, 30.9
Handlebar
Giant Connect XC, 31.8
Brake lever
Tektro M275/276
Brakes
Tektro HD-M275
Drivetrain
Crankset
Prowheel forged, 22/36
Shifter
Shimano SL-M315
Bottom bracket
cartridge
Front derailleur
Shimano M315
Rear derailleur
Shimano Tourney RD-TY300 SGS 7/6s
B axle finish
Zinc plated
B axle material
Steel
Bracket body material
Resin
Compatible chain
HG-UG 7/6-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-TY300-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/13T
Pulley cage
SGS
Speeds
7/6
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Chain
KMC Z7
Cassette
Shimano MF-TZ500
Frameset
Frame
ALUXX-Grade Aluminum, disc
Front suspension
SR Suntour XCE
Wheels
Rims
Giant GX03, Disc, Double Wall, [XXS-S] 26", [M-XL] 27.5", (21mm inner)
Tires
Giant Quickcross, [XXS-S] 26x2.1", [M-XL] 27.5x2.1", 30 TPI
Spokes
stainless, 14g
Rear hub
Alloy 32h, Disc
Front hub
Alloy 32h, Disc

Geometry

Size XXS XS SM MD LG
a
Seat tube length
350,0
385,0
420,0
455,0
505,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,0º
73,0º
c
Top tube length
556,0
566,0
576,0
591,0
611,0
d
Head tube length
95,0
105,0
120,0
110,0
145,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
92,5
92,5
92,5
92,5
92,5
h
Wheelbase
1066,0
1077,0
1088,0
1092,0
1115,0
i
Chainstay length
421,0
421,0
421,0
436,0
436,0
j
Bottom bracket drop
35,0
35,0
35,0
50,0
50,0
k
Stack height
557,0
566,0
580,0
596,0
629,0
l
Reach
391,0
399,0
404,0
409,0
419,0
m
Standover height
689,0
711,0
724,0
748,0
790,0
x
Bottom bracket height
308,0
308,0
308,0
305,0
305,0
y
Front center
647,0
658,0
669,0
661,0
684,0
