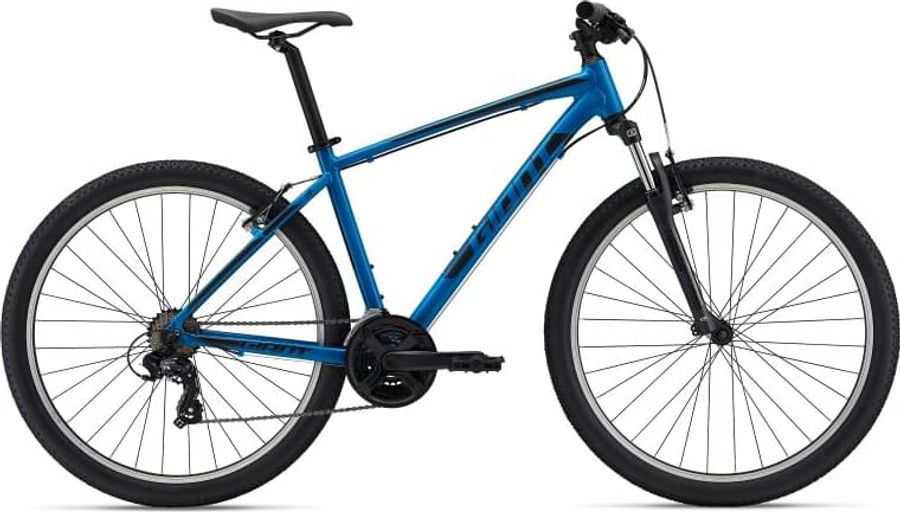

Giant ATX 2022
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
26" / 27,5"
Suspension type
Hardtail
Front travel
80mm
About the Giant ATX 2022
The Giant ATX 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 21 gears (3x7).
Specifications
|
Grip
|
Giant
|
|---|---|
|
Pedals
|
Platform
|
|
Steam
|
Giant Sport, alloy, 15-degree XS: 60mm (26) S: 75mm (26) / 60mm (27.5) M: 60mm (27.5) L: 75mm (27.5) XL: 75mm (27.5)
|
|---|---|
|
Brakes
|
MTB linear pull
|
|
Saddle
|
Giant Sport
|
|
Seatpost
|
Giant Sport, 30.9mm
|
|
Handlebar
|
Giant Sport, alloy, 25.4mm
|
|
Brake lever
|
Shimano EF41
|
|
Crankset
|
ProWheel forged, 24/34/42 XS: 165mm (26) S: 170mm (26) / 170mm (27.5) M: 170mm (27.5) L: 175mm (27.5) XL: 175mm (27.5)
|
|---|---|
|
Shifter
|
Shimano EF41, 3x7
|
|
Bottom bracket
|
Cartridge
|
|
Front derailleur
|
Shimano Tourney
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano MF-TZ500
|
|
Frame
|
ALUXX-Grade Aluminium
|
|---|---|
|
Front suspension
|
SR Suntour XCE 28
|
|
Rims
|
Giant alloy
|
|---|---|
|
Tires
|
Giant Quickcross, 27.5x2.1" / 26x2.1"
|
|
Spokes
|
Stainless, 14g
|
|
Rear hub
|
Alloy, sealed bearing
|
|
Front hub
|
Alloy, sealed bearing
|
Geometry
| Size | XS | SM | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
385,0
|
420,0
|
420,0
|
455,0
|
505,0
|
535,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
567,0
|
577,0
|
577,0
|
592,0
|
612,0
|
632,0
|
|
d
Head tube length
|
105,0
|
120,0
|
95,0
|
110,0
|
145,0
|
170,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
92,5
|
92,5
|
92,5
|
92,5
|
92,5
|
92,5
|
|
h
Wheelbase
|
1078,0
|
1089,0
|
1082,0
|
1093,0
|
1116,0
|
1138,0
|
|
i
Chainstay length
|
422,0
|
422,0
|
437,0
|
437,0
|
437,0
|
437,0
|
|
j
Bottom bracket drop
|
35,0
|
35,0
|
50,0
|
50,0
|
50,0
|
50,0
|
|
k
Stack height
|
567,0
|
581,0
|
583,0
|
597,0
|
630,0
|
653,0
|
|
l
Reach
|
400,0
|
405,0
|
405,0
|
410,0
|
420,0
|
433,0
|
|
m
Standover height
|
712,0
|
725,0
|
723,0
|
749,0
|
791,0
|
816,0
|
|
x
Bottom bracket height
|
308,0
|
308,0
|
305,0
|
305,0
|
305,0
|
305,0
|
|
y
Front center
|
658,0
|
669,0
|
650,0
|
661,0
|
684,0
|
706,0
|
