Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

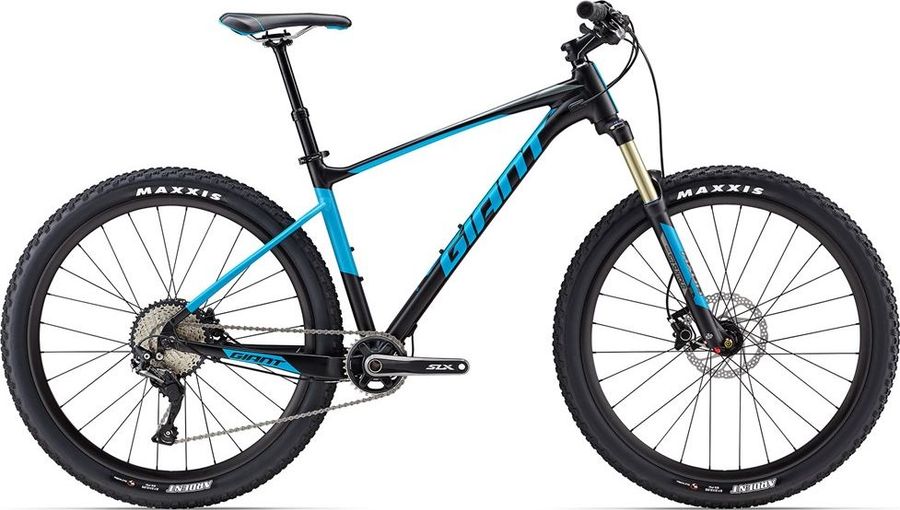

About the Giant Fathom 1 2017
The Giant Fathom 1 2017 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
Platform, caged
|
|---|
|
Steam
|
Giant Connect
|
|---|---|
|
Saddle
|
Giant Connect Upright
|
|
Seatpost
|
TranzX YSP-15 dropper post, internal routing, 30.9mm
|
|
Handlebar
|
Giant Connect Trail, 31.8mm
|
|
Brake lever
|
Shimano M365
|
|
Brakes
|
Shimano Altus BR-M365
|
|
Crankset
|
Shimano SLX, 30T
|
|---|---|
|
Shifter
|
Shimano SLX
|
|
Bottom bracket
|
Shimano, Press fit
|
|
Chain
|
Shimano CN-HG600
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Rear derailleur
|
Shimano SLX RD-M7000-11-SGS
|
|
Frame
|
ALUXX SL-grade aluminum
|
|---|---|
|
Front suspension
|
SR Suntour AXON LO RC
|
|
Rims
|
Giant XC-1
|
|---|---|
|
Tires
|
Maxxis Ardent, 27.5x2.25, Folding
|
|
Spokes
|
Stainless Steel, 14g
|
|
Rear hub
|
Giant Performance Tracker Disc, 28h, [F] 15mm thru-axle, [R] QR
|
|
Front hub
|
Giant Performance Tracker Disc, 28h, [F] 15mm thru-axle, [R] QR
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
370,0
|
390,0
|
445,0
|
480,0
|
530,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
569,0
|
589,0
|
609,0
|
629,0
|
649,0
|
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
105,0
|
105,0
|
105,0
|
105,0
|
105,0
|
|
h
Wheelbase
|
1093,0
|
1113,0
|
1135,0
|
1157,0
|
1178,0
|
|
i
Chainstay length
|
429,0
|
429,0
|
429,0
|
429,0
|
429,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
588,0
|
592,0
|
602,0
|
615,0
|
629,0
|
|
l
Reach
|
396,0
|
415,0
|
432,0
|
448,0
|
-
|
|
m
Standover height
|
701,0
|
718,0
|
747,0
|
757,0
|
790,0
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
668,0
|
688,0
|
710,0
|
732,0
|
753,0
|
