Giant Fathom 2 2017

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

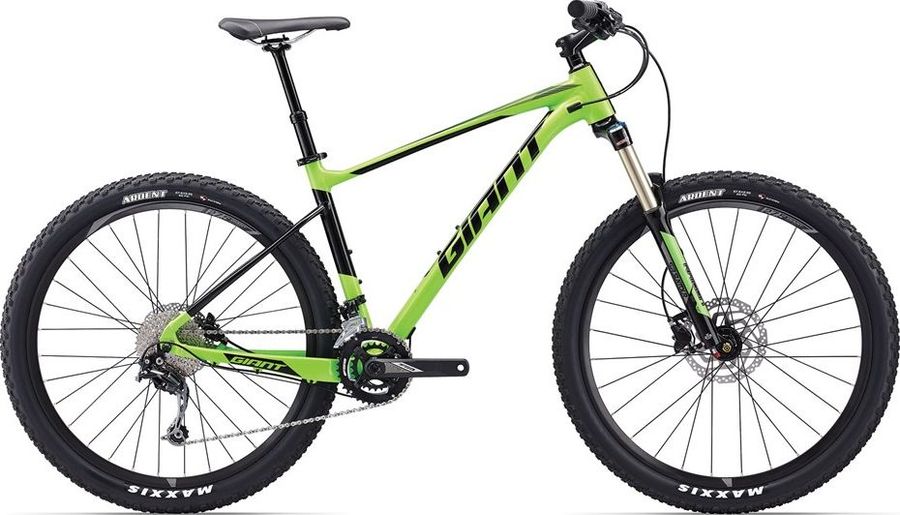

Giant Fathom 2 2017

About the Giant Fathom 2 2017

The Giant Fathom 2 2017 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 18 gears (2x9). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Giant Fathom 2 2017 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
Platform, caged
Components
Steam
Giant Connect
Saddle
Giant Connect Upright
Seatpost
TranzX YSP-03 dropper post, internal routing, 30.9mm
Handlebar
Giant Connect Trail, 31.8mm
Brake lever
Shimano M315
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
FSA Comet, 24/38
Shifter
Shimano Alivio
Bottom bracket
FSA, Press fit
Front derailleur
Shimano Deore
Rear derailleur
Shimano Deore RD-M592 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt finish
Plated
Cable fixing bolt material
Steel
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M592-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
Sunken type pulley bolt
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Chain
KMC X9
Cassette
Shimano Alivio CS-HG400-9 HG
Combination names
11-28T
11-32T
11-34T
12-36T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Ni-Ni plated
Lock ring material
Steel
Model
CS-HG400-9
Steel gear finish
Ni-Ni plated
Steel gear pieces
9
Type
HG
Frameset
Frame
ALUXX SL-grade aluminum
Front suspension
SR Suntour Raidon XC
Wheels
Rims
Giant Alloy, Double wall
Tires
Maxxis Ardent, 27.5x2.25, Folding
Spokes
Stainless Steel, 14g
Rear hub
Giant Sport Tracker Disc, [F] 9mm thru-axle 28h, [R] QR 32h
Front hub
Giant Sport Tracker Disc, [F] 9mm thru-axle 28h, [R] QR 32h

Geometry

Size XS SM MD LG XL
a
Seat tube length
370,0
390,0
445,0
480,0
530,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
569,0
589,0
609,0
629,0
649,0
d
Head tube length
95,0
100,0
110,0
125,0
140,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
67,0º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
105,0
105,0
105,0
105,0
105,0
h
Wheelbase
1093,0
1113,0
1135,0
1157,0
1178,0
i
Chainstay length
429,0
429,0
429,0
429,0
429,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
45,0
k
Stack height
588,0
592,0
602,0
615,0
629,0
l
Reach
396,0
415,0
432,0
448,0
-
m
Standover height
701,0
718,0
747,0
757,0
790,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
310,0
y
Front center
668,0
688,0
710,0
732,0
753,0
