Giant Fathom 2 2018

MTB Cross Country

Groupset

Shimano Deore

Frame material

Alloy

Wheel size

27,5"

Suspension type

Hardtail

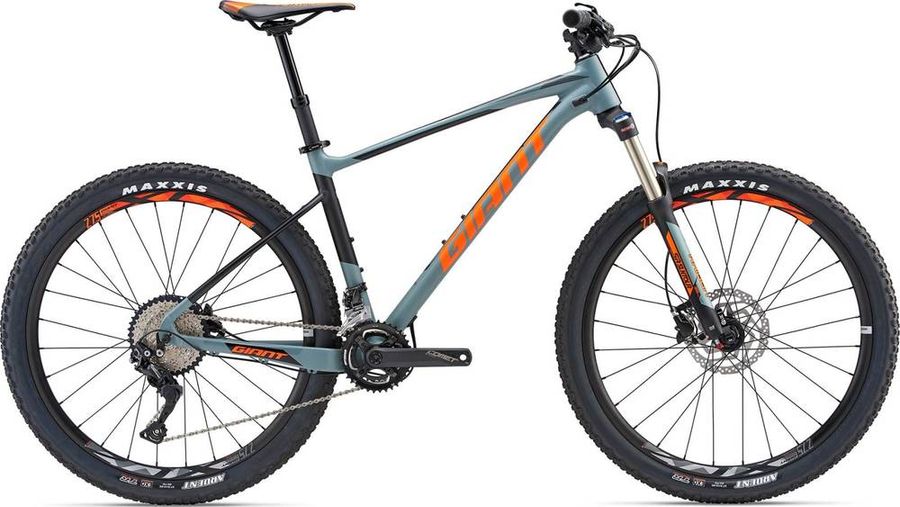

About the Giant Fathom 2 2018

The Giant Fathom 2 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10).

Specifications

Components
Seatpost	Giant Contact
Brake lever	Shimano Altus BL-M315
Brakes	Shimano Altus BR-M315
Steam	Giant Connect
Handlebar	Giant Connect
Saddle	Giant Contact

Drivetrain
Cassette	FSA Comet
Chain	KMC X10
Shifter	Shimano Deore SL-M6000 RAPIDFIRE PLUS
Base cover material GFRP Clamp bolt material Stainless steel Primary color Series black Compatible rear derailleur type MTB 10-speed Main lever body material GFRP & Steel Max multiple shifts main lever rear 3 Model SL-M6000-R Mount type Clamp band Optical gear display With Speeds 10 Release function 2-WAY RELEASE release_lever_body.material GFRP & Steel Shifter type RAPIDFIRE PLUS Shifting lever bracket finish Painted Shifting lever bracket material Aluminum Shifting lever cable finish OPTISLICK Shifting lever cable material Stainless steel Shifting lever cable adjust
Rear derailleur	Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 10-speed Lower pulley max 36T Lower pulley min 32T Model RD-M6000-SGS P axle material Steel pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage SGS Speeds 10 Upper pulley max 11T Upper pulley min 11T Total capacity 43T
Crankset	FSA Comet
Front derailleur	Shimano Deore FD-M6000
Action side swing applicable_top_mid_tooth_difference 10T Cable route type front pull Chain guide finish Plated Chain guide material Steel Primary color Series Black Compatible chain HG-X 10speed Inner link finish Painted Inner link material Aluminum Link bushings 4 Model FD-M6000-D Outer link material GFRP + Steel Rear clamp band base bracket finish Painted Rear clamp band base bracket material Aluminum Stroke adjusting screw finish Black Stroke adjusting screw material Steel Total capacity 18T

Frameset
Frame	Giant ALUXX SL-Grade Alumínio
Front suspension	SR Suntour Raidon XC-LO-R

Wheels
Front hub	Giant Tracker Sport
Spokes	Sapim Leader
Rear hub	Giant Tracker Sport
Tires	Maxxis Ardent

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Deore 2 × 10

Crank: 36-26T

Cassette: 26-36T

Speeds: 20s

Gearing

Average

0,73

Average

1,39

Compared to similar bikes, the Giant Fathom 2 2018 has a good uphill performance and a bad downhill performance.

Report incorrect information

Geometry

Size	S	M	L	XL
a Seat tube length	390,0	445,0	480,0	530,0
b Seat tube angle	73,5º	73,5º	73,5º	73,5º
c Top tube length	585,0	605,0	625,0	645,0
d Head tube length	100,0	110,0	125,0	140,0
e Head tube angle	67,0º	67,0º	67,0º	67,0º
f Rake	-	-	-	-
g Trail	-	-	-	-
h Wheelbase	1109,0	1131,0	1153,0	1174,0
i Chainstay length	425,0	425,0	425,0	425,0
j Bottom bracket drop	45,0	45,0	45,0	45,0
k Stack height	588,0	598,0	611,0	625,0
l Reach	411,0	428,0	444,0	460,0
m Standover height	714,0	743,0	753,0	786,0
x Bottom bracket height	-	-	-	-
y Front center	-	-	-	-
