Giant Fathom 2 2019

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail

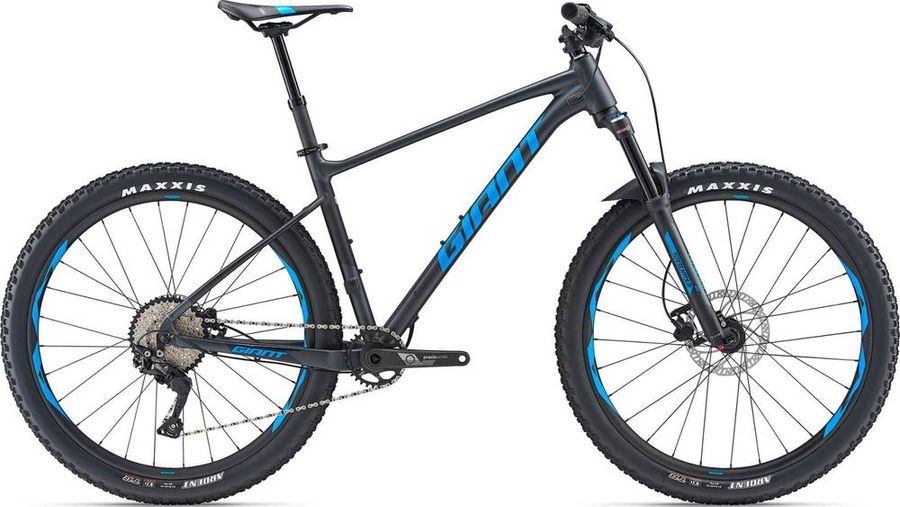

Giant Fathom 2 2019

About the Giant Fathom 2 2019

The Giant Fathom 2 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes.

Features

The Giant Fathom 2 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Brake lever
Tektro HD-M275
Seatpost
Giant Contact
Brakes
Tektro HD-M275
Steam
Giant Connect
Handlebar
Giant Connect
Saddle
Giant Contact
Drivetrain
Crankset
Praxis CADET M30
Chain
KMC X10
Shifter
Shimano Deore SL-M6000 RAPIDFIRE PLUS
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series black
Compatible rear derailleur type
MTB 10-speed
Main lever body material
GFRP & Steel
Max multiple shifts main lever rear
3
Model
SL-M6000-R
Mount type
Clamp band
Optical gear display
With
Speeds
10
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Frameset
Front suspension
SR Suntour XCR 32
Frame
Giant ALUXX SL-Grade Alumínio
Wheels
Front hub
Giant Tracker Performance
Tires
Maxxis Ardent Race
Rear hub
Giant Tracker Sport

Geometry

Size S M L XL
a
Seat tube length
390,0
445,0
480,0
530,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
585,0
605,0
625,0
645,0
d
Head tube length
100,0
110,0
125,0
140,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1110,0
1131,0
1153,0
1174,0
i
Chainstay length
425,0
425,0
425,0
425,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
588,0
598,0
611,0
625,0
l
Reach
411,0
428,0
444,0
460,0
m
Standover height
691,0
731,0
745,0
784,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
