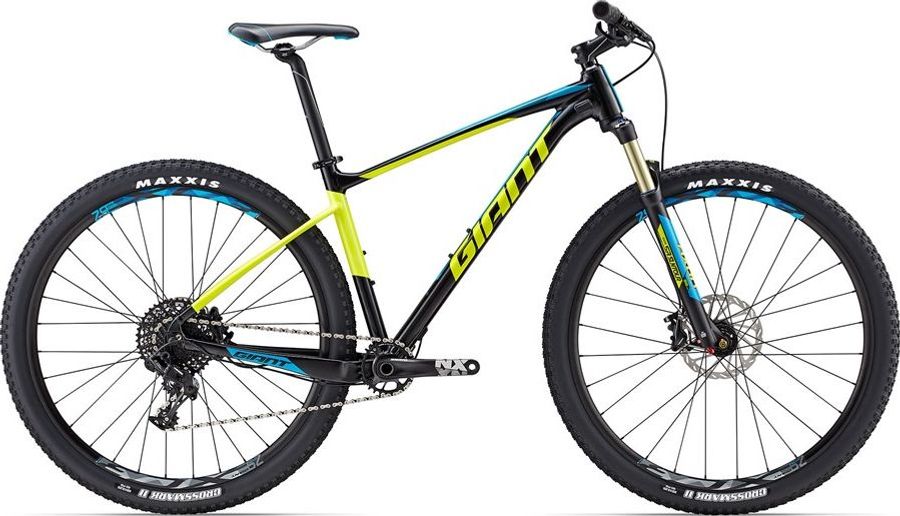

Giant Fathom 29 1 2017
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm
About the Giant Fathom 29 1 2017
The Giant Fathom 29 1 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
Platform, caged
|
|---|
|
Steam
|
Giant Connect
|
|---|---|
|
Saddle
|
Giant Connect Upright
|
|
Seatpost
|
Giant Connect, 30.9mm
|
|
Handlebar
|
Giant Connect Trail, 31.8mm
|
|
Brake lever
|
Shimano M425
|
|
Brakes
|
Shimano Alivio BR-M395
|
|
Crankset
|
SRAM NX, 28T
|
|---|---|
|
Shifter
|
SRAM NX
|
|
Bottom bracket
|
SRAM GXP, Press fit
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Chain
|
KMC X11
|
|
Frame
|
ALUXX SL-grade aluminum
|
|---|---|
|
Front suspension
|
SR Suntour AXON LO RC
|
|
Rims
|
Giant XC-3
|
|---|---|
|
Tires
|
Maxxis Ikon, 29x2.20, Wire
|
|
Spokes
|
Stainless Steel, 14g
|
|
Rear hub
|
Giant Sport Tracker Disc, 28h, [F] 15mm thru-axle, [R] QR
|
|
Front hub
|
Giant Sport Tracker Disc, 28h, [F] 15mm thru-axle, [R] QR
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
445,0
|
480,0
|
530,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
592,0
|
612,0
|
632,0
|
652,0
|
|
d
Head tube length
|
95,0
|
100,0
|
115,0
|
130,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
98,0
|
98,0
|
98,0
|
98,0
|
|
h
Wheelbase
|
1107,0
|
1128,0
|
1149,0
|
1170,0
|
|
i
Chainstay length
|
449,0
|
449,0
|
449,0
|
449,0
|
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
610,0
|
615,0
|
629,0
|
643,0
|
|
l
Reach
|
413,0
|
432,0
|
448,0
|
464,0
|
|
m
Standover height
|
737,0
|
763,0
|
772,0
|
797,0
|
|
x
Bottom bracket height
|
319,0
|
319,0
|
319,0
|
319,0
|
|
y
Front center
|
664,0
|
685,0
|
706,0
|
727,0
|
