Giant Fathom 29 1 2019

MTB Cross Country
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail

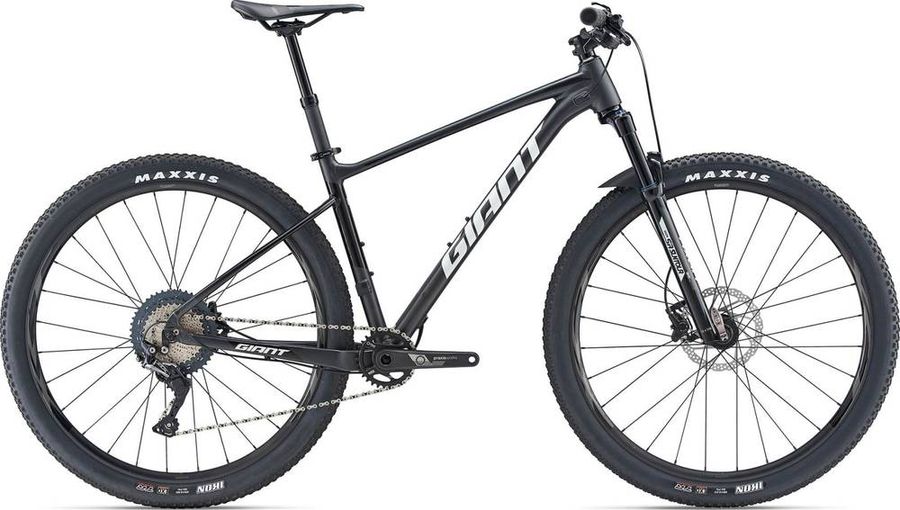

Giant Fathom 29 1 2019

About the Giant Fathom 29 1 2019

The Giant Fathom 29 1 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain.

Specifications

Components
Seatpost
Giant Contact
Brakes
Shimano Acera BL-MT400
Steam
Giant Connect
Brake lever
Shimano Acera BL-MT400
Handlebar
Giant Connect
Saddle
Giant Contact
Drivetrain
Crankset
Praxis CADET M30
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Rear derailleur
Shimano SLX RD-M7000-10-SGS 313 g SGS 10s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M7000-10-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Shifter
Shimano SLX SL-M7000 135 ( /pc) g RAPIDFIRE PLUS
Average weight (g)
135 ( /pc)
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series color
Compatible rear derailleur type
MTB 11-speed
Compatible with I spec
Main lever body material
GFRP & Steel
Max multiple shifts main lever rear
3
Model
SL-M7000-11-R
Mount type
Clamp band
Optical gear display
With (removable)
Speeds
11
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Chain
KMC X11
Frameset
Front suspension
SR Suntour AXON LO RC
Frame
Giant ALUXX SL-Grade Alumínio
Wheels
Tires
Maxxis Ikon
Front hub
Giant Tracker Performance
Rear hub
Giant Tracker Sport

Geometry

Size S M L XL
a
Seat tube length
390,0
445,0
480,0
530,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
585,0
605,0
625,0
645,0
d
Head tube length
95,0
100,0
115,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1,1e3
1121,0
1142,0
1163,0
i
Chainstay length
442,0
442,0
442,0
442,0
j
Bottom bracket drop
55,0
55,0
55,0
55,0
k
Stack height
603,0
608,0
622,0
636,0
l
Reach
406,0
425,0
441,0
457,0
m
Standover height
700,0
739,0
751,0
782,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
