Giant Fathom 29 1 2020

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

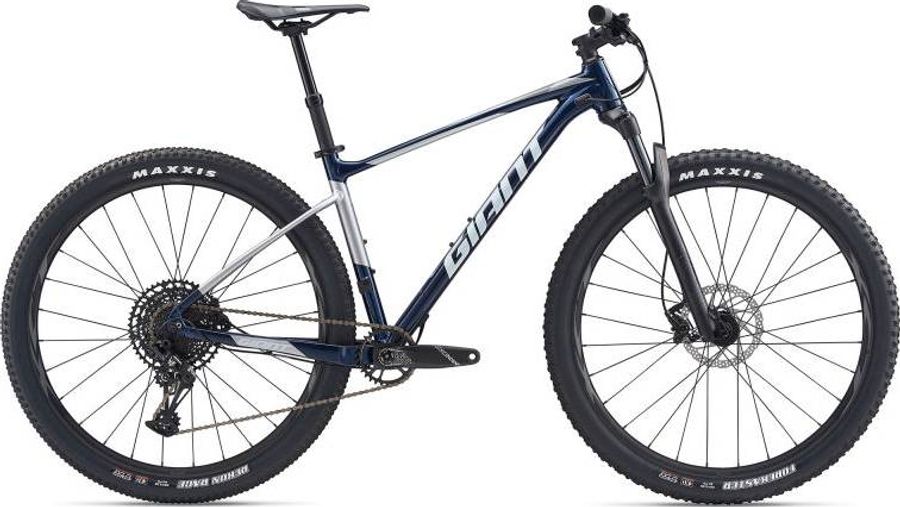

Giant Fathom 29 1 2020

About the Giant Fathom 29 1 2020

The Giant Fathom 29 1 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant Fathom 29 1 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Giant Contact
Saddle
Giant Contact (neutral)
Seatpost
Giant Contact Switch dropper post with remote, 30.9
Handlebar
Giant Connect Trail, 780x31.8, [GA 690]
Brake lever
Shimano MT401
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
TruVativ Descendent 6k DUB, 30t
Shifter
SRAM SX Eagle
Bottom bracket
SRAM DUB, press fit
Cassette
SRAM SX Eagle
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Frameset
Frame
ALUXX SL-Grade Aluminum
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Giant XCT 29” tubeless ready sleeve-joint rim, 25mm inner width
Tires
[F] Maxxis Forekaster 2, EXO/TR[R]Maxxis 29x2.35 Rekon Race, foldable, EXO/T
Spokes
Sapim
Rear hub
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Giant Sport Boost QR 141, loose ball
Front hub
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Giant Sport Boost QR 141, loose ball

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
445,0
480,0
530,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
592,0
612,0
632,0
652,0
d
Head tube length
95,0
100,0
115,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
100,5
100,5
100,5
100,5
h
Wheelbase
1107,0
1128,0
1149,0
1170,0
i
Chainstay length
449,0
449,0
449,0
449,0
j
Bottom bracket drop
55,0
55,0
55,0
55,0
k
Stack height
610,0
615,0
629,0
643,0
l
Reach
413,0
432,0
448,0
464,0
m
Standover height
707,0
746,0
758,0
789,0
x
Bottom bracket height
319,0
319,0
319,0
319,0
y
Front center
664,0
685,0
706,0
727,0
