Giant Fathom 29 1 2021

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
130mm

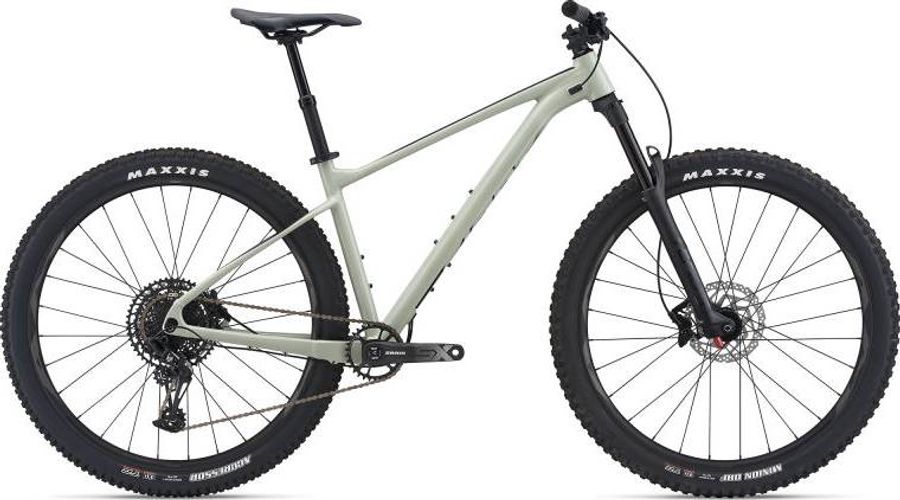

Giant Fathom 29 1 2021

About the Giant Fathom 29 1 2021

The Giant Fathom 29 1 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Fathom 29 1 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact TR 35
Saddle
Giant Romero
Seatpost
Giant Contact Switch dropper post with remote, 30.9
Handlebar
Giant Contact Trail, 35
Brake lever
Shimano MT401
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
SRAM SX Eagle, DUB, 30t
Shifter
SRAM SX Eagle
Bottom bracket
SRAM DUB, press fit
Cassette
SRAM SX Eagle
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Frameset
Frame
ALUXX SL-Grade Aluminum
Front suspension
Giant Crest 34 RCL
Wheels
Rims
Giant AM 29 wheelset, alloy, 30mm inner
Tires
[F] Maxxis DHF, tubeless, 29x2.5, WT, foldable, EXO, TR [R] Maxxis Aggressor, tubeless, 29x2.5, WT, foldable, EXO, TR
Spokes
Sapim
Rear hub
Giant Performance Tracker, [F] Boost 15x110mm [R] Boost 12x148mm
Front hub
Giant Performance Tracker, [F] Boost 15x110mm [R] Boost 12x148mm

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
430,0
465,0
495,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
589,0
609,0
636,0
659,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
122,0
122,0
122,0
122,0
h
Wheelbase
1151,0
1171,0
1,2e3
1224,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
619,0
619,0
628,0
637,0
l
Reach
422,0
442,0
467,0
487,0
m
Standover height
727,0
742,0
762,0
787,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
y
Front center
726,0
746,0
774,0
798,0
