Giant Fathom 29 2 2018

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail

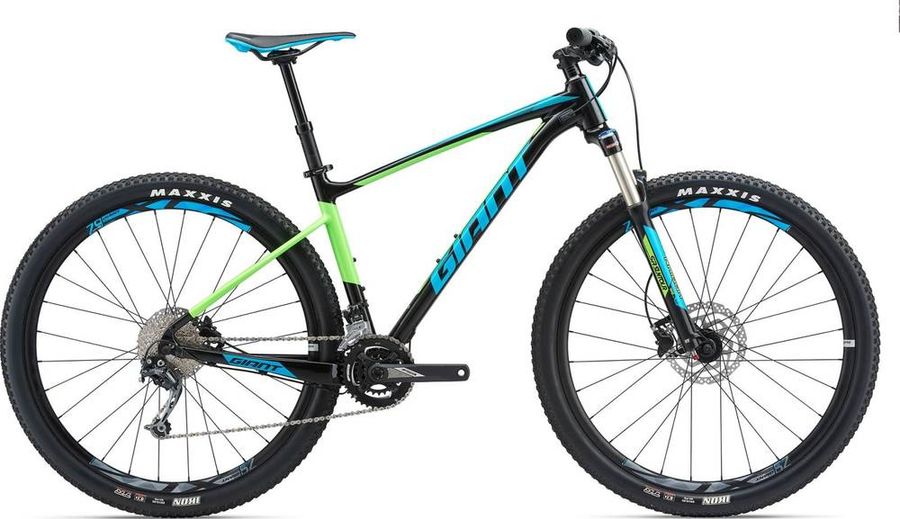

Giant Fathom 29 2 2018

About the Giant Fathom 29 2 2018

The Giant Fathom 29 2 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 18 gears (2x9).

Specifications

Components
Seatpost
Giant Contact
Brake lever
Shimano Altus BL-M315
Brakes
Shimano Altus BR-M315
Steam
Giant Connect
Handlebar
Giant Connect
Saddle
Giant Contact
Drivetrain
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Chain
KMC X9
Cassette
Shimano Alivio CS-HG400-9 HG
Combination names
11-28T
11-32T
11-34T
12-36T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Ni-Ni plated
Lock ring material
Steel
Model
CS-HG400-9
Steel gear finish
Ni-Ni plated
Steel gear pieces
9
Type
HG
Front derailleur
Shimano Deore FD-M6000
Action side swing
applicable_top_mid_tooth_difference
10T
Cable route type front pull
Chain guide finish
Plated
Chain guide material
Steel
Primary color
Series Black
Compatible chain
HG-X 10speed
Inner link finish
Painted
Inner link material
Aluminum
Link bushings
4
Model
FD-M6000-D
Outer link material
GFRP + Steel
Rear clamp band base bracket finish
Painted
Rear clamp band base bracket material
Aluminum
Stroke adjusting screw finish
Black
Stroke adjusting screw material
Steel
Total capacity
18T
Shifter
Shimano Alivio SL-M4000
Frameset
Frame
Giant ALUXX SL-Grade Alumínio
Front suspension
SR Suntour Raidon XC-LO-R
Wheels
Tires
Maxxis Ikon
Front hub
Giant Tracker Sport
Rear hub
Giant Tracker Sport

Geometry

Size S M L XL
a
Seat tube length
390,0
445,0
480,0
530,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
585,0
605,0
625,0
645,0
d
Head tube length
95,0
100,0
115,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1,1e3
1121,0
1142,0
1163,0
i
Chainstay length
442,0
442,0
442,0
442,0
j
Bottom bracket drop
55,0
55,0
55,0
55,0
k
Stack height
603,0
608,0
622,0
636,0
l
Reach
406,0
425,0
441,0
457,0
m
Standover height
730,0
756,0
765,0
790,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
