Giant Fathom 29 2 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
130mm

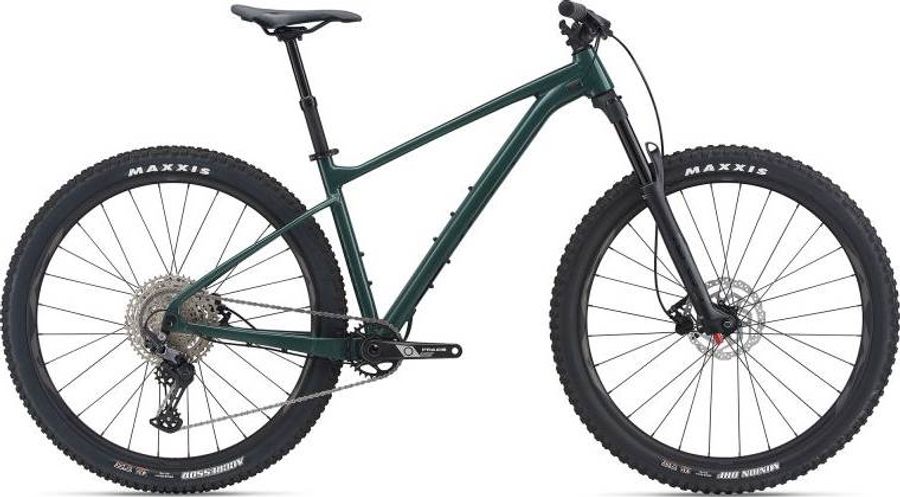

Giant Fathom 29 2 2021

About the Giant Fathom 29 2 2021

The Giant Fathom 29 2 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Fathom 29 2 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info

Specifications

Components
Steam
Giant Contact TR 35
Saddle
Giant Romero
Seatpost
Giant Contact Switch dropper post with remote, 30.9
Handlebar
Giant Contact Trail, 35
Brake lever
Tektro TKD143
Brakes
Tektro TKD 143
Drivetrain
Chain
Shimano
Crankset
Praxis Cadet Boost, 30t
Shifter
Shimano Deore
Bottom bracket
Praxis, press fit
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Rear derailleur
Shimano Deore RD-M5120 SGS 11/10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Lower pulley max
46T (1x11/1x10-speed)
42T (2x11/2x10-speed)
Lower pulley min
42T
Model
RD-M5120-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
11/10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Frameset
Frame
ALUXX SL-Grade Aluminum
Front suspension
Giant Crest 34 RCL
Wheels
Rims
Giant AM 29 wheelset, alloy, 30mm inner
Tires
[F] Maxxis DHF, tubeless, 29x2.5, WT, foldable, EXO, TR [R] Maxxis Aggressor, tubeless, 29x2.5, WT, foldable, EXO, TR
Spokes
Sapim
Rear hub
Shimano Boost [F] 15x110 [R] 12x148, sealed bearing
Front hub
Shimano Boost [F] 15x110 [R] 12x148, sealed bearing

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
430,0
465,0
495,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
589,0
609,0
636,0
659,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
122,0
122,0
122,0
122,0
h
Wheelbase
1151,0
1171,0
1,2e3
1224,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
619,0
619,0
628,0
637,0
l
Reach
422,0
442,0
467,0
487,0
m
Standover height
727,0
742,0
762,0
787,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
y
Front center
726,0
746,0
774,0
798,0
