Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
130mm

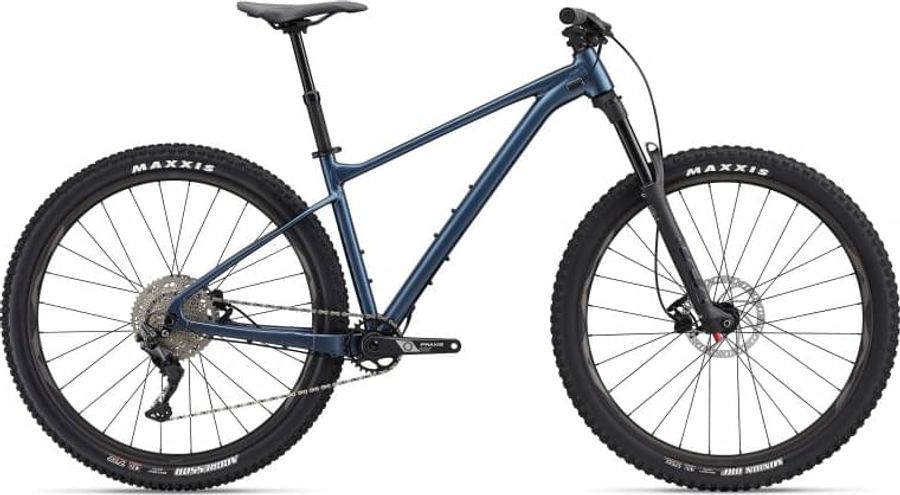

About the Giant Fathom 29 2 2022
The Giant Fathom 29 2 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Giant Sole-O
|
|---|
|
Steam
|
Giant Contact, S:40mm, M:40mm, L:50mm, XL:50mm
|
|---|---|
|
Saddle
|
Giant Romero
|
|
Seatpost
|
Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 170mm travel / 30.9 x 455mm
|
|
Handlebar
|
Giant Contact TR, 31.8mm
|
|
Brake lever
|
Tektro TDK143
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
Praxis Cadet M24, 30t S:165mm, M:170mm, L:170mm, XL:170mm
|
|---|---|
|
Shifter
|
Shimano Deore M-4100, 1x10
|
|
Bottom bracket
|
Praxis, press fit
|
|
Chain
|
KMC X10
|
|
Rear derailleur
|
Shimano Deore RD-M5120
SGS
11/10s
|
|
42T (2x11/2x10-speed) |
|
|
Cassette
|
Shimano Deore CS-M4100-10
HG
|
|
11-46T |
|
|
Frame
|
ALUXX SL-Grade Aluminium
|
|---|---|
|
Front suspension
|
Giant Crest 34 RCL
|
|
Rims
|
Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
|
|---|---|
|
Tires
|
[F] Maxxis Minion DHF, 29x2.5 WT, EXO/TR [R] Maxxis Aggressor, 29x2.5 WT, foldable, EXO/T
|
|
Spokes
|
Stainless
|
|
Rear hub
|
Alloy, sealed
|
|
Front hub
|
Alloy, sealed
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
430,0
|
465,0
|
495,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
589,0
|
609,0
|
636,0
|
659,0
|
|
d
Head tube length
|
95,0
|
95,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
122,0
|
122,0
|
122,0
|
122,0
|
|
h
Wheelbase
|
1151,0
|
1171,0
|
1,2e3
|
1224,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
619,0
|
619,0
|
628,0
|
637,0
|
|
l
Reach
|
422,0
|
442,0
|
467,0
|
487,0
|
|
m
Standover height
|
727,0
|
742,0
|
762,0
|
787,0
|
|
x
Bottom bracket height
|
314,0
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
726,0
|
746,0
|
774,0
|
798,0
|
