Giant Fathom E+ 1 Pro 2020

E-Bike
MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

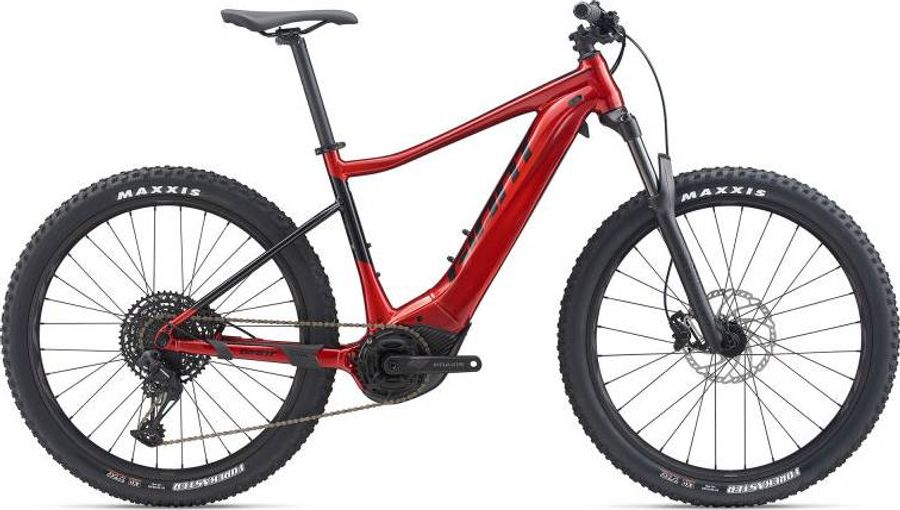

Giant Fathom E+ 1 Pro 2020

About the Giant Fathom E+ 1 Pro 2020

The Giant Fathom E+ 1 Pro 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and e-thru axle.

Features

The Giant Fathom E+ 1 Pro 2020 has 6 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Remote
Giant RideControl ONE
Components
Steam
Giant Contact
Saddle
Giant Sport
Battery
Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Handlebar
Giant Connect TR Riser 31.8x780mm
Brake lever
Shimano MT401 Hydraulic Disc
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM X-Sync 38T chainring Praxis e-Cadet+ custom forged crankarm set
Motor
Giant SyncDrive Pro
Shifter
SRAM SX Eagle
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
ALUXX SL aluminum, Overdrive 1½ - 1⅛" head tube, 148x12mm Thru-Axle, integrated KS18 kickstand mount
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Giant AM 27.5+, Tubeless ready, 35mm inner width
Tires
Maxxis Forekaster 27.5x2.6, foldable, 60 TPI, EXO, Tubeless Ready
Spokes
Sapim E-Lite [r] Race [f]
Rear hub
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle
Front hub
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle

Geometry

Size SM MD LG
a
Seat tube length
405,0
465,0
505,0
b
Seat tube angle
73,0º
73,0º
73,0º
c
Top tube length
580,0
605,0
630,0
d
Head tube length
105,0
115,0
125,0
e
Head tube angle
68,0º
68,0º
68,0º
f
Rake
46,0
46,0
46,0
g
Trail
101,1
101,1
101,1
h
Wheelbase
1145,0
1171,0
1197,0
i
Chainstay length
480,0
480,0
480,0
j
Bottom bracket drop
45,0
45,0
45,0
k
Stack height
622,0
631,0
640,0
l
Reach
391,0
413,0
435,0
m
Standover height
758,0
765,0
792,0
x
Bottom bracket height
310,0
310,0
310,0
y
Front center
669,0
695,0
721,0
