Giant Fathom E+ 29 2 2021

E-Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
19,5 kg
Front travel
120mm

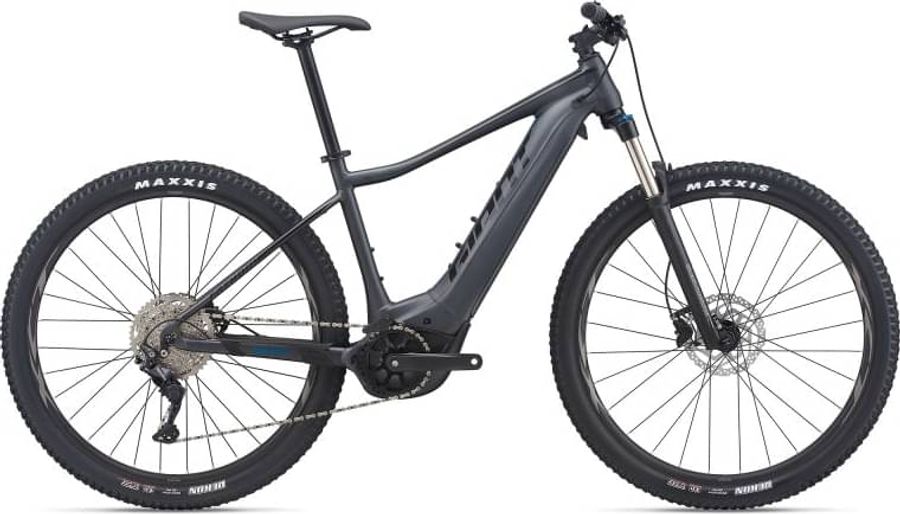

Giant Fathom E+ 29 2 2021

About the Giant Fathom E+ 29 2 2021

The Giant Fathom E+ 29 2 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include e-thru axle, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 19,5 kg.

Features

The Giant Fathom E+ 29 2 2021 has 4 features listed below.
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Aluminium Platform
Remote
Wireless display compatible (ANT+ and Bluetooth)
Components
Steam
Giant Contact
Saddle
Giant Sport
Battery
Giant EnergyPak Smart 500, 36V Integrated Lithium-Ion
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Handlebar
Giant Connect TR Riser 31.8x690~780mm
Brake lever
Shimano BL-MT200
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Forged Alloy minimal Q-factor, 36T Steel Direct Mount
Motor
Giant SyncDrive Sport
Shifter
Shimano Deore
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC e10 Sport
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
ALUXX Aluminium, Overdrive 1½ - 1⅛" Head Tube, 141mm Boost QR, ISS, Giant EnergyPak Plus Range Extender Compatible, Integrated KS18 Kickstand Mount, compatible with fenders
Front suspension
SR Suntour XCR 32
Wheels
Rims
Giant XCT 29 Tubeless Ready 25mm e-bike optimised
Tires
Maxxis Rekon 29x2.4", EXO, 60 TPI (max tyre width possible: 2.4" rear, 2.5" front)
Spokes
Stainless steel
Rear hub
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR, e-bike optimised
Front hub
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR, e-bike optimised

Geometry

Size SM MD LG XL XXL
a
Seat tube length
405,0
455,0
505,0
535,0
560,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
580,0
605,0
630,0
655,0
680,0
d
Head tube length
105,0
115,0
125,0
140,0
155,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
100,7
100,7
100,7
100,7
101,0
h
Wheelbase
1146,0
1172,0
1198,0
1224,0
1250,0
i
Chainstay length
480,0
480,0
480,0
480,0
480,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
45,0
k
Stack height
630,0
639,0
648,0
662,0
676,0
l
Reach
389,0
411,0
433,0
454,0
475,0
m
Standover height
728,0
758,0
793,0
813,0
833,0
x
Bottom bracket height
329,0
329,0
329,0
329,0
329,0
y
Front center
670,0
696,0
722,0
747,0
773,0
