Giant Fathom E+ 29 3 2021

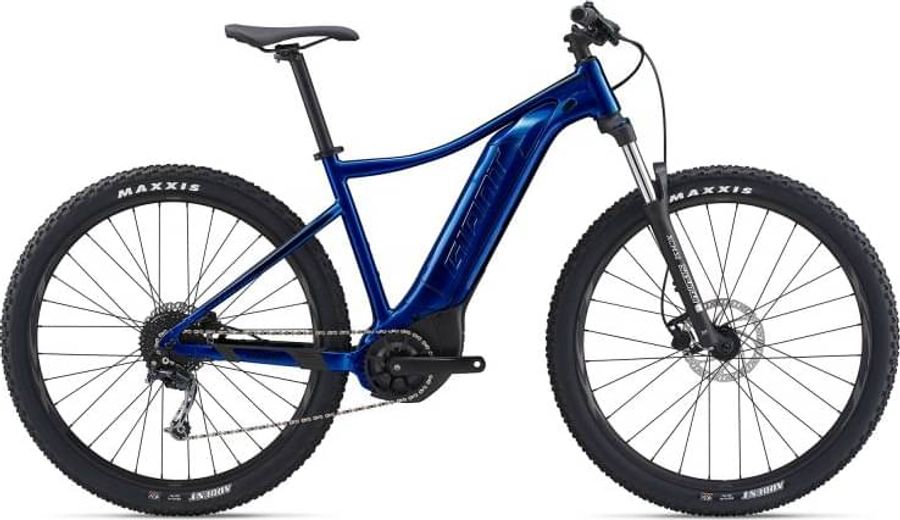

The Giant Fathom E+ 29 3 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm
About the Giant Fathom E+ 29 3 2021
The Giant Fathom E+ 29 3 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 9 gears (1x9). Its features include hydraulic disc brakes, tapered head tube, and tubeless ready.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Aluminum Platform
|
|---|---|
|
Remote
|
Wireless display compatible
|
|
Steam
|
Giant Contact
|
|---|---|
|
Saddle
|
Giant Sport
|
|
Battery
|
Giant EnergyPak 400Wh
|
|
Seatpost
|
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
|
|
Handlebar
|
Giant Connect TR Riser 31.8x750mm
|
|
Brake lever
|
Tektro HD-M285
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring
|
|---|---|
|
Motor
|
Giant SyncDrive Sport, 70Nm, 350% tuneable support with automatic smart support
|
|
Shifter
|
Shimano Altus 1x9
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Rear derailleur
|
Shimano Alivio RD-M3100
SGS
9s
|
|
|
|
|
Chain
|
KMC e9 Sport
|
|
Frame
|
ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, 141mm Boost QR, integrated KS18 kickstand mount
|
|---|---|
|
Front suspension
|
SR Suntour XCM 32
|
|
Rims
|
Giant XCT 29 Tubeless Ready 25mm e-bike optimized
|
|---|---|
|
Tires
|
Maxxis Ardent 29x2.4", EXO, 60 TPI
|
|
Spokes
|
Stainless steel
|
|
Rear hub
|
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR, e-bike optimized
|
|
Front hub
|
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR, e-bike optimized
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
405,0
|
455,0
|
505,0
|
535,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
580,0
|
600,0
|
620,0
|
640,0
|
|
d
Head tube length
|
110,0
|
115,0
|
140,0
|
150,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
95,3
|
95,3
|
95,3
|
95,3
|
|
h
Wheelbase
|
1145,0
|
1166,0
|
1188,0
|
1209,0
|
|
i
Chainstay length
|
475,0
|
475,0
|
475,0
|
475,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
622,0
|
627,0
|
650,0
|
659,0
|
|
l
Reach
|
391,0
|
410,0
|
422,0
|
440,0
|
|
m
Standover height
|
758,0
|
765,0
|
792,0
|
796,0
|
|
x
Bottom bracket height
|
329,0
|
329,0
|
329,0
|
329,0
|
|
y
Front center
|
674,0
|
695,0
|
717,0
|
738,0
|
