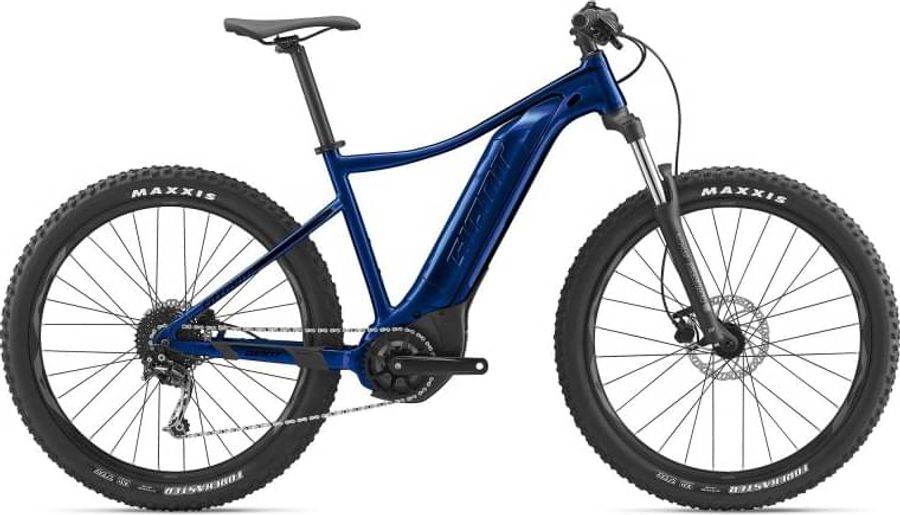

Giant Fathom E+ 3 2021
The Giant Fathom E+ 3 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm
About the Giant Fathom E+ 3 2021
The Giant Fathom E+ 3 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 9 gears (1x9). Its features include boost 110 , e-thru axle, and hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Aluminum Platform
|
|---|---|
|
Remote
|
Wireless display compatible (ANT+ and Bluetooth)
|
|
Steam
|
Giant Contact
|
|---|---|
|
Saddle
|
Giant Sport
|
|
Battery
|
Giant EnergyPak 400, 36V 11.3Ah Rechargeable Lithium-Ion
|
|
Seatpost
|
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
|
|
Handlebar
|
Giant Connect TR Riser 31.8x750mm
|
|
Brake lever
|
Tektro HD-M285
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring
|
|---|---|
|
Motor
|
Giant SyncDrive Sport
|
|
Shifter
|
Shimano SL-M2000
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Rear derailleur
|
Shimano Alivio RD-M3100
SGS
9s
|
|
|
|
|
Chain
|
KMC e9 Sport
|
|
Frame
|
ALUXX aluminium, Overdrive 1½ - 1⅛" head tube, 141mm Boost QR, integrated KS18 kickstand mount
|
|---|---|
|
Front suspension
|
SR Suntour XCM 32
|
|
Rims
|
Giant AM 27.5, Tubeless ready, 30mm inner width
|
|---|---|
|
Tires
|
Maxxis Recon 27.5x2.6, foldable, 60 TPI
|
|
Spokes
|
Stainless steel
|
|
Rear hub
|
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR
|
|
Front hub
|
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
405,0
|
455,0
|
505,0
|
535,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
580,0
|
600,0
|
620,0
|
640,0
|
|
d
Head tube length
|
110,0
|
115,0
|
140,0
|
150,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
100,7
|
100,7
|
100,7
|
100,7
|
|
h
Wheelbase
|
1140,0
|
1161,0
|
1183,0
|
1204,0
|
|
i
Chainstay length
|
475,0
|
475,0
|
475,0
|
475,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
622,0
|
627,0
|
650,0
|
659,0
|
|
l
Reach
|
391,0
|
410,0
|
422,0
|
440,0
|
|
m
Standover height
|
758,0
|
765,0
|
792,0
|
796,0
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
669,0
|
690,0
|
712,0
|
733,0
|
