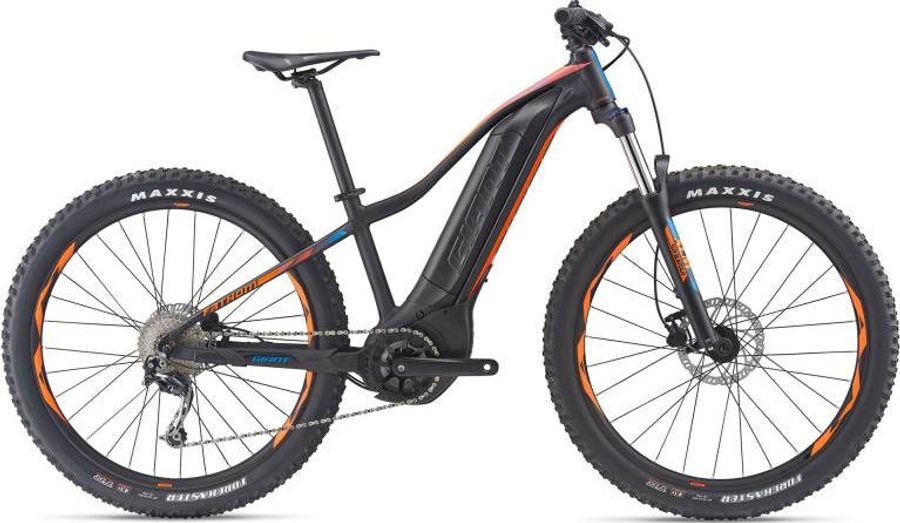

Giant Fathom E+ 3 POWER 2019
The Giant Fathom E+ 3 POWER 2019 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm
About the Giant Fathom E+ 3 POWER 2019
The Giant Fathom E+ 3 POWER 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 9 gears (1x9). Its features include hydraulic disc brakes, tapered head tube, and tubeless ready.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Aluminum Platform
|
|---|---|
|
Remote
|
Giant RideControl ONE, remote button
|
|
Steam
|
Giant Connect
|
|---|---|
|
Saddle
|
Giant Contact, Neutral
|
|
Battery
|
Giant EnergyPak500, 36V 13.8Ah Rechargeable Lithium-Ion
|
|
Seatpost
|
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
|
|
Handlebar
|
Giant Connect TR, 31,8x780mm
|
|
Brake lever
|
Tektro HD-M285
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring
|
|---|---|
|
Motor
|
Giant SyncDrive Sport. Pedal assist up to 20 mph.
|
|
Shifter
|
Shimano SL-M2000
|
|
Rear derailleur
|
Shimano Deore RD-M592
SGS
9s
|
|
|
|
|
Cassette
|
Shimano Altus CS-HG201-9
HG
|
|
11-34T 11-36T |
|
|
Chain
|
KMC e9 Sport
|
|
Frame
|
ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, 141mm Boost QR, integrated KS18 kickstand mount
|
|---|---|
|
Front suspension
|
SR Suntour XCM 34
|
|
Rims
|
Giant AM 27.5, Tubeless ready, 30mm inner width, e-bike optimized
|
|---|---|
|
Tires
|
Maxxis Forekaster 27.5x2.6, foldable, 60 TPI, EXO, Tubeless ready
|
|
Spokes
|
Stainless steel
|
|
Rear hub
|
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR, e-bike optimized
|
|
Front hub
|
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR, e-bike optimized
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
405,0
|
455,0
|
505,0
|
535,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
580,0
|
600,0
|
620,0
|
640,0
|
|
d
Head tube length
|
110,0
|
115,0
|
140,0
|
150,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
101,0
|
101,0
|
101,0
|
101,0
|
|
h
Wheelbase
|
1140,0
|
1161,0
|
1183,0
|
1204,0
|
|
i
Chainstay length
|
475,0
|
475,0
|
475,0
|
475,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
622,0
|
627,0
|
650,0
|
659,0
|
|
l
Reach
|
391,0
|
410,0
|
422,0
|
440,0
|
|
m
Standover height
|
758,0
|
765,0
|
792,0
|
796,0
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
669,0
|
690,0
|
712,0
|
733,0
|
