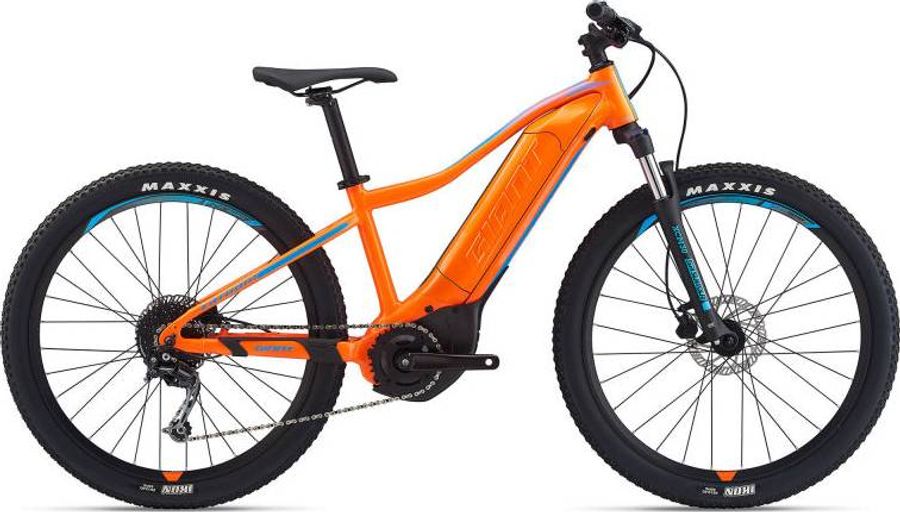

Giant Fathom E+ Junior 2021
The Giant Fathom E+ Junior 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
80mm
About the Giant Fathom E+ Junior 2021
The Giant Fathom E+ Junior 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 9 gears (1x9). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Giant RideControl ONE, Remote button
|
|---|
|
Steam
|
Giant Contact, 8 degree
|
|---|---|
|
Saddle
|
Giant Sport
|
|
Battery
|
Giant EnergyPak 400, 36V integrated Lithium-Ion
|
|
Seatpost
|
Giant Alloy, 30.9mm
|
|
Handlebar
|
Giant Connect trail rise, 31.8mm
|
|
Brake lever
|
Tektro HDM282 hydraulic
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
Forged Alloy, 34T
|
|---|---|
|
Motor
|
Giant SyncDrive Sport, powered by YAMAHA
|
|
Shifter
|
Shimano Altus, 9sp
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Rear derailleur
|
Shimano Alivio RD-M3100
SGS
9s
|
|
|
|
|
Chain
|
KMC e9 Sport
|
|
Frame
|
ALUXX grade aluminium
|
|---|---|
|
Front suspension
|
SR Suntour XCM HLO
|
|
Rims
|
Giant alloy
|
|---|---|
|
Tires
|
Maxxis Ikon, 26x2.20”
|
|
Spokes
|
Stainless steel, 14g
|
|
Rear hub
|
Giant alloy disc, Fr: 28H, Rr: 32H
|
|
Front hub
|
Giant alloy disc, Fr: 28H, Rr: 32H
|
Geometry
| Size | One Size |
|---|---|
|
a
Seat tube length
|
365,0
|
|
b
Seat tube angle
|
73,5º
|
|
c
Top tube length
|
549,0
|
|
d
Head tube length
|
110,0
|
|
e
Head tube angle
|
68,0º
|
|
f
Rake
|
40,0
|
|
g
Trail
|
93,0
|
|
h
Wheelbase
|
1071,0
|
|
i
Chainstay length
|
454,0
|
|
j
Bottom bracket drop
|
35,0
|
|
k
Stack height
|
548,0
|
|
l
Reach
|
386,0
|
|
m
Standover height
|
-
|
|
x
Bottom bracket height
|
308,0
|
|
y
Front center
|
619,0
|
