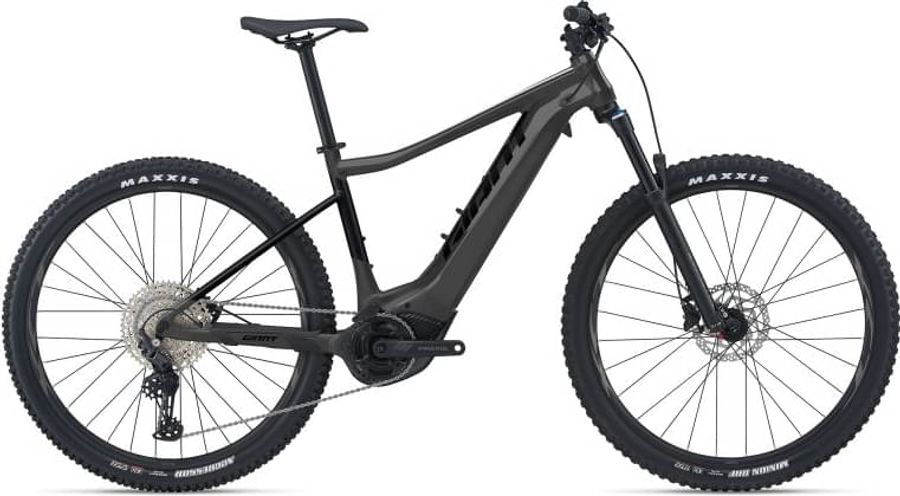

Giant Fathom E+ Pro 29 2 2021
The Giant Fathom E+ Pro 29 2 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
19,5 kg
Front travel
130mm
About the Giant Fathom E+ Pro 29 2 2021
The Giant Fathom E+ Pro 29 2 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and e-thru axle. The bike weighs approximately 19,5 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Aluminium Platform
|
|---|---|
|
Remote
|
Wireless display compatible (ANT+ and Bluetooth)
|
|
Steam
|
Giant Contact
|
|---|---|
|
Saddle
|
Giant Sport
|
|
Battery
|
Giant EnergyPak Smart 625, 36V Integrated Lithium-Ion
|
|
Seatpost
|
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
|
|
Handlebar
|
Giant Connect TR Riser 31.8x780mm
|
|
Brake lever
|
Shimano BL-MT200
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
|
|---|---|
|
Motor
|
Giant SyncDrive Pro
|
|
Shifter
|
Shimano Deore, 11-Speed
|
|
Chain
|
KMC e11 Sport
|
|
Rear derailleur
|
Shimano Deore XT RD-M8000-GS
271 g
GS
11s
|
|
46T(1x11-speed) |
|
|
Cassette
|
Shimano Deore CS-M5100-11
HG
|
|
11-51T |
|
|
Frame
|
ALUXX SL aluminum, Overdrive 1½ - 1⅛" head tube, 148x12mm Thru-Axle, integrated KS18 kickstand mount, compatible with fenders
|
|---|---|
|
Front suspension
|
SR Suntour Raidon 34
|
|
Rims
|
Giant XCT 29 Tubeless Ready 25mm e-bike optimised
|
|---|---|
|
Tires
|
Maxxis DHF 29X2.5" WT Foldable 60TPI TLR EXO [F]Maxxis Aggressor 29X2.5" WT Foldable 60TPI TLR EXO [R] (max tyre width 2.4" rear, 2.5" front)
|
|
Spokes
|
Stainless steel
|
|
Rear hub
|
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle
|
|
Front hub
|
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
405,0
|
455,0
|
505,0
|
535,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
580,0
|
605,0
|
630,0
|
655,0
|
|
d
Head tube length
|
105,0
|
115,0
|
125,0
|
135,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
108,5
|
108,5
|
108,5
|
108,5
|
|
h
Wheelbase
|
1209,0
|
1236,0
|
1263,0
|
1290,0
|
|
i
Chainstay length
|
480,0
|
480,0
|
480,0
|
480,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
621,0
|
630,0
|
640,0
|
649,0
|
|
l
Reach
|
426,0
|
449,0
|
472,0
|
495,0
|
|
m
Standover height
|
763,0
|
767,0
|
799,0
|
821,0
|
|
x
Bottom bracket height
|
329,0
|
329,0
|
329,0
|
329,0
|
|
y
Front center
|
733,0
|
759,0
|
786,0
|
813,0
|
