BikeWise

Giant Full-E+ 0 SX 2017

E-Bike
MTB Trail
Groupset
SRAM EX1
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
140mm
Giant Full-E+ 0 SX 2017

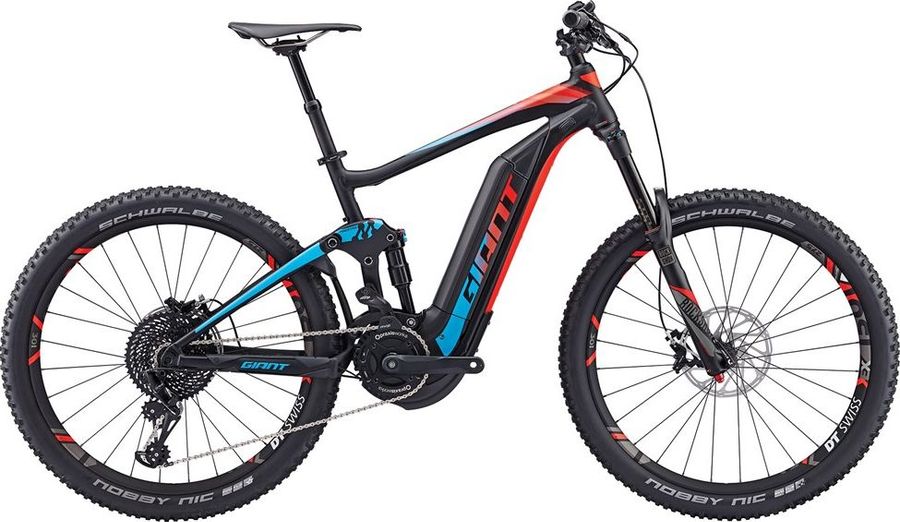

About the Giant Full-E+ 0 SX 2017

The Giant Full-E+ 0 SX 2017 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM EX1 drivetrain of 8 gears (1x8). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Full-E+ 0 SX 2017 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
Aluminum Platform
Remote
Giant RideControl EVO, grip launch control with walk assist, mini USB charger
Components
Steam
Giant Contact
Saddle
Giant Contact SL Upright, SST tubular rails
Battery
Giant EnergyPak500, 36V 13.8Ah Rechargeable Lithium-Ion
Seatpost
Giant Contact SL Switch Trail, remote height adjust
Handlebar
Contact SL DH
Brake lever
SRAM Guide RSC
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
Custom forged, Praxis Works 36T
Motor
Giant SyncDrive Sport, 80Nm, 500W, Powered by Yamaha
Shifter
SRAM EX1 e-MTB specific
Front derailleur
MRP 1x Carbon D-Mount mini-guide
Chain
SRAM PC-1051 Chain
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Silver
Color outer link
Silver
Compat speed
10s
Inner link finish
Nickel
Model
CN-1051-A1
Name
PC-1051 Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Rear derailleur
SRAM EX1 X-HORIZON Rear Derailleur 8s
Cable pull ratio
1:1
Cage material
Aluminum
Color
Black
Max tooth
48
Model
RD-EX1-A1
Name
EX1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
8s
Cassette
SRAM XG-899 E-BLOCK Cassette 8s 320 g
Cog finish cassete
Black
Cog sizes
11-48t:11,13,15,18,24,32,40,48
Gearing
11-48t
Model
CS-XG-899-A1
Name
XG-899 E-BLOCK™ Cassette
Speed
8s
Technology cassete
XG
Weight
320
Frameset
Frame
ALUXX SL-grade aluminum, 140mm Maestro suspension
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Super Deluxe RCT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RCT-B1
Name
Super Deluxe RCT
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
DT Swiss EX 1501 Spline One
Tires
Schwalbe Nobby Nic, 27.5x2.60, Evo Foldable, SnakeSkin sidewall, [F] Trail Star, [R] Pace Star
Spokes
DT Swiss Competition, 14/15g
Rear hub
DT Swiss Spline One 240s, [F] Boost 110x15 [R] Boost 148x12
Front hub
DT Swiss Spline One 240s, [F] Boost 110x15 [R] Boost 148x12

Geometry

Size SM MD LG XL
a
Seat tube length
431,0
450,0
500,0
530,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
562,0
587,0
607,0
632,0
d
Head tube length
125,0
125,0
140,0
160,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
103,0
103,0
102,0
102,0
h
Wheelbase
1140,0
1165,0
1187,0
1214,0
i
Chainstay length
460,0
460,0
460,0
460,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
607,0
607,0
621,0
639,0
l
Reach
375,0
400,0
416,0
435,0
m
Standover height
-
-
-
-
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
680,0
705,0
727,0
754,0
