Giant Full-E+ 0 SX Pro 2018

E-Bike
MTB Enduro
Groupset
SRAM EX1
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
140mm

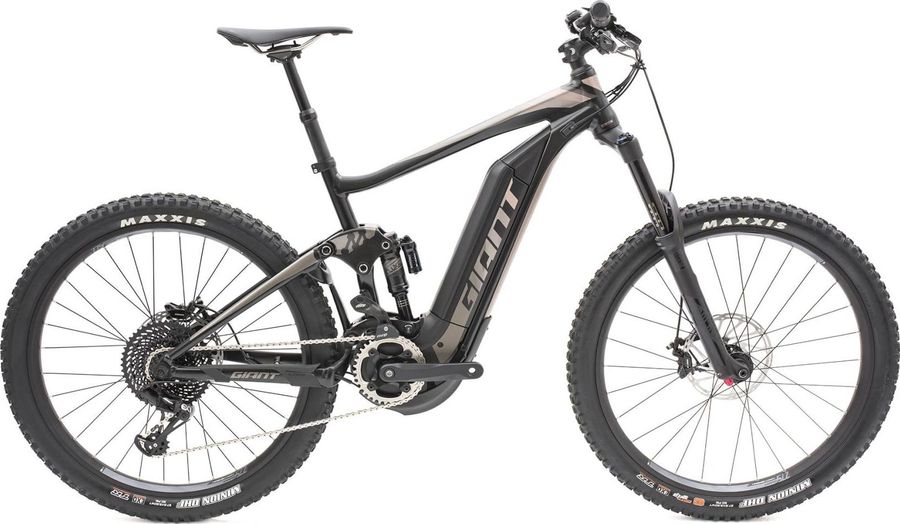

Giant Full-E+ 0 SX Pro 2018

About the Giant Full-E+ 0 SX Pro 2018

The Giant Full-E+ 0 SX Pro 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM EX1 drivetrain of 8 gears (1x8). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Full-E+ 0 SX Pro 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Alloy Platform
Remote
Giant RideControl EVO, grip launch control with walk assist, mini USB charger
Components
Steam
Giant Contact
Saddle
Giant Contact SL Neutral
Battery
Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion
Headset
Giant
Seatpost
Giant Contact Switch, remote height adjust, 30.9
Handlebar
Giant Contact DH, 31.8mm
Brake lever
SRAM Guide RE
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
Praxis Works, 36T
Motor
Giant SyncDrive Pro, 80Nm, Powered by Yamaha
Shifter
SRAM EX1 e-MTB specific
Chain guide
MRP
Front derailleur
MRP 1X D-Mount Carbon 'TR' mini-guide
Rear derailleur
SRAM EX1 X-HORIZON Rear Derailleur 8s
Cable pull ratio
1:1
Cage material
Aluminum
Color
Black
Max tooth
48
Model
RD-EX1-A1
Name
EX1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
8s
Cassette
SRAM XG-899 E-BLOCK Cassette 8s 320 g
Cog finish cassete
Black
Cog sizes
11-48t:11,13,15,18,24,32,40,48
Gearing
11-48t
Model
CS-XG-899-A1
Name
XG-899 E-BLOCK™ Cassette
Speed
8s
Technology cassete
XG
Weight
320
Chain
SRAM EX1 Chain
Chain connector
PowerLock
Chain length links
144 links
Color inner link
Grey
Color outer link
Grey
Compat speed
10s
Inner link finish
Polished
Model
CN-EX-1-A1
Name
EX1 Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Frameset
Frame
ALUXX SL-grade aluminum
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Super Deluxe RC3
Wheels
Rims
Giant eXX2 Disc, Tubeless, e-bike optimized
Tires
Maxxis Rekon, 27.5x2.6, foldable, EXO protect, [R] Dual Compound, [F] 3Maxx Grip, Tubeless Ready
Spokes
Sapim E-Lite, e-bike optimized
Rear hub
Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt [F] 110x15mm, 28h, [R] 148x12mm Thru-axle, e-bike optimized, 32h
Front hub
Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt [F] 110x15mm, 28h, [R] 148x12mm Thru-axle, e-bike optimized, 32h

Geometry

Size SM MD LG XL
a
Seat tube length
431,0
450,0
500,0
530,0
b
Seat tube angle
72,5º
72,5º
72,5º
72,5º
c
Top tube length
562,0
587,0
607,0
632,0
d
Head tube length
125,0
125,0
140,0
160,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
103,0
103,0
103,0
103,0
h
Wheelbase
1153,0
1178,0
1,2e3
1227,0
i
Chainstay length
460,0
460,0
460,0
460,0
j
Bottom bracket drop
5,0
5,0
5,0
5,0
k
Stack height
618,0
618,0
632,0
650,0
l
Reach
364,0
389,0
405,0
424,0
m
Standover height
773,0
774,0
811,0
837,0
x
Bottom bracket height
350,0
350,0
350,0
350,0
y
Front center
693,0
718,0
740,0
767,0
