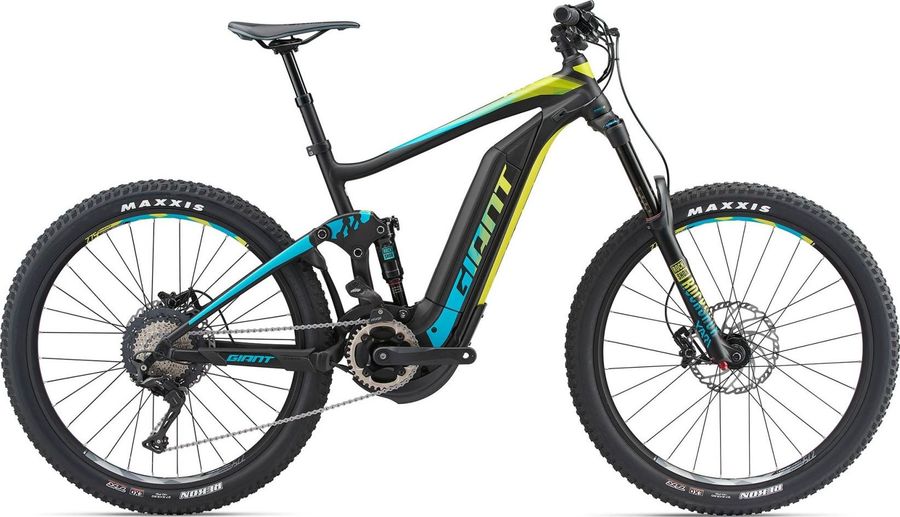

Giant Full-E+ 1 SX Pro 2018

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
140mm
Giant Full-E+ 1 SX Pro 2018

About the Giant Full-E+ 1 SX Pro 2018

The Giant Full-E+ 1 SX Pro 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Full-E+ 1 SX Pro 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Alloy Platform
Remote
Giant RideControl EVO, grip launch control with walk assist, mini USB charger
Components
Steam
Giant Connect
Saddle
Giant Contact neutral
Battery
Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion
Headset
Giant
Seatpost
Giant Contact Switch, remote height adjust, 30.9
Handlebar
Giant Contact DH, 31.8mm
Brake lever
Shimano BL-M6000, i-Spec II
Brakes
Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Black
Secondary color
Series Silver *
color.3
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal **
Pad standard
G02S Resin,
G03S Resin
Pad standard
J02A Resin **
J03A Resin **
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended brake lever
BL-M6100
BL-MT501
BL-T6000
Recommended disc brake rotor
SM-RT54****
SM-RT56****
SM-RT64
SM-RT66
Drivetrain
Crankset
Praxis Works, 36T
Motor
Giant SyncDrive Pro, 80Nm, Powered by Yamaha
Shifter
Shimano SLX
Chain guide
MRP 1X D-Mount 'TR' mini-guide
Front derailleur
MRP 1X D-Mount 'TR' mini-guide
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
ALUXX SL-grade aluminum
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
Giant eXX2 Disc, Tubeless, e-bike optimized
Tires
Maxxis Rekon, 27.5x2.6, foldable, EXO protect, [R] Dual Compound, [F] 3Maxx Grip, Tubeless Ready
Spokes
Sapim E-Lite, e-bike optimized
Rear hub
Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt [F] 110x15mm, 28h, [R] 148x12mm Thru-axle, e-bike optimized, 32h
Front hub
Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt [F] 110x15mm, 28h, [R] 148x12mm Thru-axle, e-bike optimized, 32h

Geometry

Size SM MD LG XL
a
Seat tube length
431,0
450,0
500,0
530,0
b
Seat tube angle
72,5º
72,5º
72,5º
72,5º
c
Top tube length
562,0
587,0
607,0
632,0
d
Head tube length
125,0
125,0
140,0
160,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
103,0
103,0
103,0
103,0
h
Wheelbase
1153,0
1178,0
1,2e3
1227,0
i
Chainstay length
460,0
460,0
460,0
460,0
j
Bottom bracket drop
5,0
5,0
5,0
5,0
k
Stack height
618,0
618,0
632,0
650,0
l
Reach
364,0
389,0
405,0
424,0
m
Standover height
773,0
774,0
811,0
837,0
x
Bottom bracket height
350,0
350,0
350,0
350,0
y
Front center
693,0
718,0
740,0
767,0
