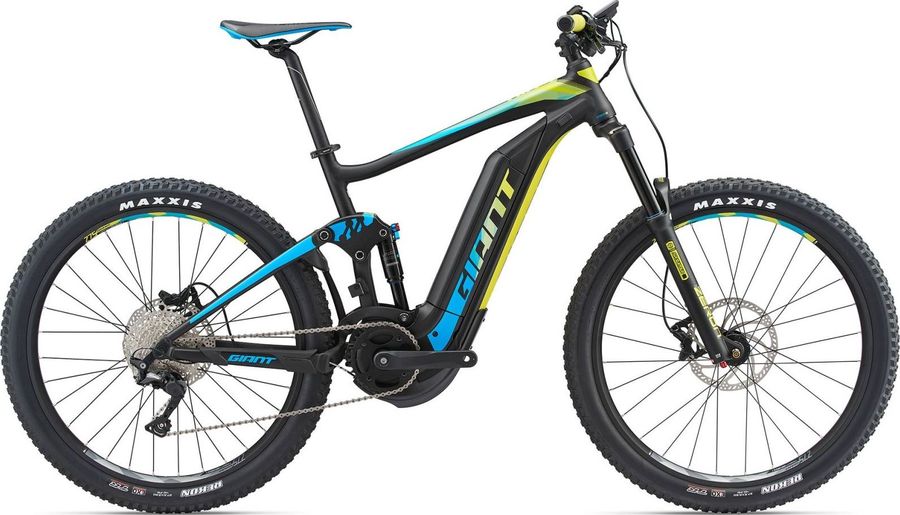

Giant Full-E+ 3 2018
The Giant Full-E+ 3 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm
About the Giant Full-E+ 3 2018
The Giant Full-E+ 3 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
Alloy Platform
|
|---|---|
|
Remote
|
Giant RideControl Charge, grip launch control with walk assist, mini USB charger
|
|
Steam
|
Giant Connect
|
|---|---|
|
Saddle
|
Giant Contact Neutral
|
|
Battery
|
Giant EnergyPak400, 36V, 11.3Ah, Rechargeable Lithium-Ion
|
|
Headset
|
Giant OverDrive
|
|
Seatpost
|
Giant Connect, 30.9
|
|
Handlebar
|
Giant Connect TR, 31.8mm
|
|
Brake lever
|
Tektro Orion 4P HD-M745 hydraulic disc
|
|
Brakes
|
Tektro Orion
|
|
Crankset
|
Samox AONE, 38T
|
|---|---|
|
Motor
|
Giant SyncDrive Sport, 80Nm, Powered by Yamaha
|
|
Shifter
|
Shimano Deore
|
|
Cassette
|
Sunrace 10-speed
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Frame
|
ALUXX SL-grade aluminum
|
|---|---|
|
Front suspension
|
SR Suntour ZERON 34
|
|
Rear suspension
|
SR Suntour Unair LOR8
|
|
Rims
|
Giant eXX2 Disc, Tubeless, e-bike optimized
|
|---|---|
|
Tires
|
Maxxis Rekon, 27.5x2.6, foldable, Double Compound, Exo protect, Tubeless
|
|
Spokes
|
Stainless Steel, [F] 14g [R] 13g
|
|
Rear hub
|
Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt[F] 110x15mm, 28h,[R] 148x12mm Thru-axle, e-bike optimized, 32h
|
|
Front hub
|
Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt[F] 110x15mm, 28h,[R] 148x12mm Thru-axle, e-bike optimized, 32h
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
431,0
|
450,0
|
500,0
|
530,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
562,0
|
587,0
|
607,0
|
632,0
|
|
d
Head tube length
|
125,0
|
125,0
|
140,0
|
160,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
109,0
|
109,0
|
109,0
|
109,0
|
|
h
Wheelbase
|
1140,0
|
1165,0
|
1187,0
|
1214,0
|
|
i
Chainstay length
|
460,0
|
460,0
|
460,0
|
460,0
|
|
j
Bottom bracket drop
|
12,0
|
12,0
|
12,0
|
12,0
|
|
k
Stack height
|
607,0
|
607,0
|
621,0
|
639,0
|
|
l
Reach
|
375,0
|
400,0
|
416,0
|
435,0
|
|
m
Standover height
|
765,0
|
766,0
|
803,0
|
829,0
|
|
x
Bottom bracket height
|
343,0
|
343,0
|
343,0
|
343,0
|
|
y
Front center
|
680,0
|
705,0
|
727,0
|
754,0
|
