Giant Glory Advanced 1 2017

MTB Downhill
Groupset
Shimano Zee
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
200mm
Rear travel
200mm

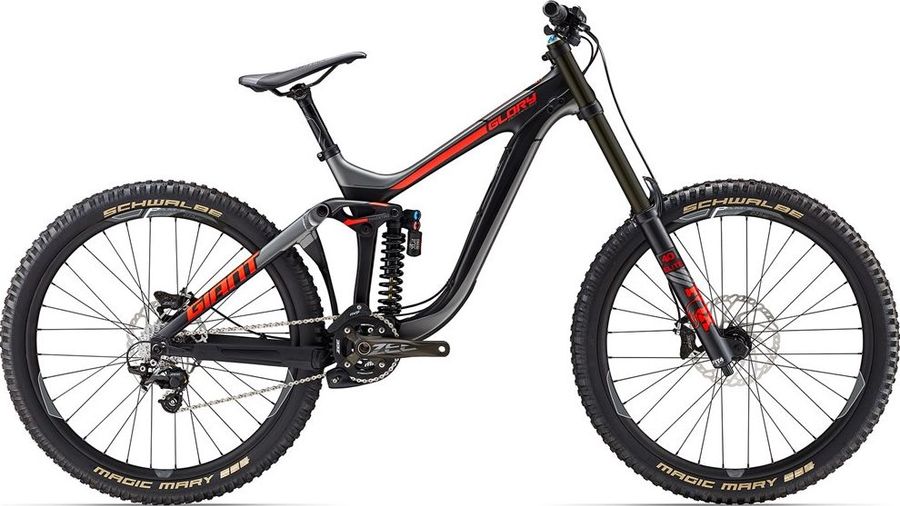

Giant Glory Advanced 1 2017

About the Giant Glory Advanced 1 2017

The Giant Glory Advanced 1 2017 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a Shimano Zee drivetrain of 10 gears (1x10). Its features include e-thru axle e hydraulic disc brakes.

Features

The Giant Glory Advanced 1 2017 has 2 features listed below.
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Truvativ Holzfeller Direct Mount
Saddle
Giant Contact Forward
Seatpost
Giant Contact SL Zero Offset, 30.9mm
Handlebar
Giant Contact SL DH, 31.8mm
Brake lever
Shimano Zee
Brakes
Shimano ZEE BR-M640 314 ** g Hydraulic disc brake 4 piston
Average weight (g)
314 **
Brake hose color kit
Black
Brake hose color kit
White
Brake hose kit
SM-BH90-SBS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M640
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
H01A Resin
H03A Resin
Pad standard
D01S Resin
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano Zee, 36T w/ MRP G4 Mini (Alloy backplate)
Shifter
Shimano Zee
Bottom bracket
Shimano, Press fit
Chain
KMC X10
Cassette
SRAM PG-1070 10s
Cog finish cassete
Silver
Cog sizes
11-23t:11,12,13,14,15,16,17,19,21,23
11-25t:11,12,13,14,15,17,19,21,23,25
11-26t:11,12,13,14,15,17,19,21,23,26
11-28t:11,12,13,14,15,17,19,22,25,28
11-32t 11,12,13,15,17,19,22,25,28,32
11-32t:11,12,14,16,18,20,22,25,28,32
11-36t:11,13,15,17,19,22,25,28,32,36
12-25t:12,13,14,15,16,17,19,21,23,25
12-26t:12,13,14,15,16,17,19,21,23,26
12-27t:12,13,14,15,16,17,19,21,24,27
12-28t:12,13,14,15,16,17,19,22,25,28
12-32t:12,13,14,15,17,19,22,25,28,32
12-36t:12,13,15,17,19,22,25,28,32,36
Gearing
11-23t
11-25t
11-26t
11-28t
11-32t
11-36t
12-25t
12-26t
12-27t
12-28t
12-32t
12-36t
Model
CS-PG-1070-A1
Name
PG-1070 Cassette
Speed
10s
Technology cassete
PG
Rear derailleur
Shimano Zee RD-M640-SS 275 g SS 10s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T(Freeride spec),
28T(DH spec)
Lower pulley min
23T
Model
RD-M640-SS
P axle material
Steel
Pulley bolts material
Stainless steel
Sunken type pulley bolt
Pulley teeth
11T
Pulley cage
SS
Speeds
10
Upper pulley max
12T
Upper pulley min
11T
Total capacity
25T
Frameset
Frame
Advanced-grade composite w/ ALUXX SL rear triangle, 200mm Maestro suspension
Front suspension
Fox 40 Performance Elite
Rear suspension
Fox DHX2 Performance Elite
Wheels
Rims
Giant P-AM2
Tires
Schwalbe Magic Mary DH, 27.5x2.35, Vertstar
Spokes
Sapim Race, 14/15g
Rear hub
Giant Performance Tracker Disc, 32h, [F] 20mm Thru Axle [R] 12x150mm
Front hub
Giant Performance Tracker Disc, 32h, [F] 20mm Thru Axle [R] 12x150mm

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
430,0
440,0
450,0
b
Seat tube angle
55,3º
63,6º
63,6º
63,6º
c
Top tube length
562,0
577,0
613,0
628,0
d
Head tube length
104,0
104,0
109,0
109,0
e
Head tube angle
63,0º
63,0º
63,0º
63,0º
f
Rake
48,0
48,0
48,0
48,0
g
Trail
129,0
129,0
129,0
129,0
h
Wheelbase
1,2e3
1212,0
1250,0
1266,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
6,0
6,0
6,0
6,0
k
Stack height
588,0
588,0
592,0
592,0
l
Reach
403,0
419,0
454,0
469,0
m
Standover height
717,0
712,0
714,0
722,0
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
768,0
780,0
818,0
834,0
