Giant Reign 1 2020

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,24 kg
Front travel
170mm
Rear travel
160mm

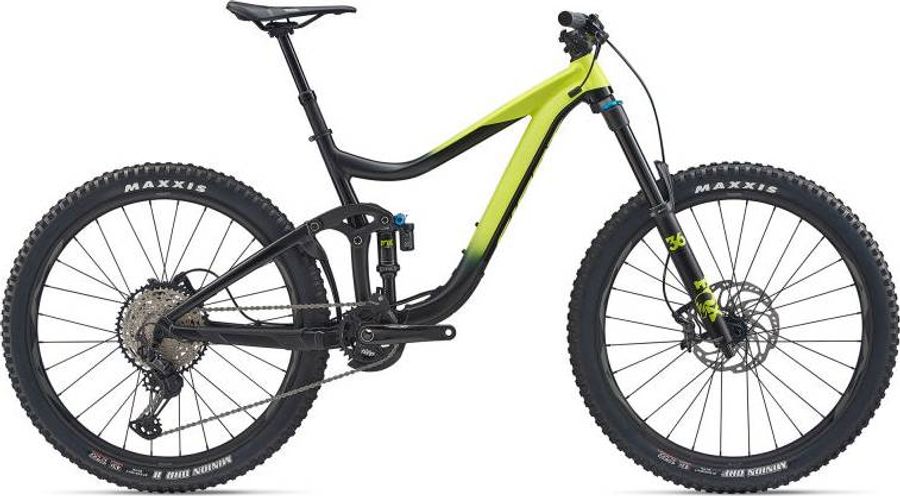

Giant Reign 1 2020

About the Giant Reign 1 2020

The Giant Reign 1 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,24 kg.

Features

The Giant Reign 1 2020 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Contact (neutral)
Seatpost
Giant Contact Switch dropper post with remote, 30.9
Handlebar
Giant Contact TR35, 780x35mm, 20mm rise
Brake lever
Shimano Deore XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Chain
Shimano
Crankset
Shimano Deore XT, 32t with MRP AMg V2 alloy guide
Shifter
Shimano Deore XT
Bottom bracket
Shimano, press fit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
ALUXX SL-Grade Aluminum, 160mm
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Float Performance
Wheels
Rims
Giant AM 27.5 tubeless ready sleeve-joint rim, 30mm inner width
Tires
[F] Maxxis Minion DHF 27.5x2.5 WT, folding, EXO, TR, tubeless, [R] Maxxis Minion DHRII 27.5x2.4 WT, folding, EXO, TR, tubeless
Spokes
Sapim
Rear hub
[F] Shimano Boost 15x110, sealed bearing [R]Shimano Boost 12x148, sealed bearing
Front hub
[F] Shimano Boost 15x110, sealed bearing [R]Shimano Boost 12x148, sealed bearing

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
431,0
464,0
496,0
b
Seat tube angle
72,5º
72,5º
72,5º
72,5º
c
Top tube length
598,0
634,0
654,0
679,0
d
Head tube length
95,0
95,0
115,0
125,0
e
Head tube angle
64,5º
64,5º
64,5º
64,5º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
120,0
120,0
120,0
120,0
h
Wheelbase
1175,0
1210,0
1233,0
1259,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
7,0
7,0
7,0
7,0
k
Stack height
577,0
577,0
596,0
605,0
l
Reach
416,0
451,0
466,0
488,0
m
Standover height
694,0
713,0
738,0
758,0
x
Bottom bracket height
348,0
348,0
348,0
348,0
y
Front center
743,0
778,0
801,0
827,0
