Giant Reign 2 2019

MTB Cross Country

Groupset

Shimano Deore

Frame material

Alloy

Wheel size

27,5"

Suspension type

Full suspension

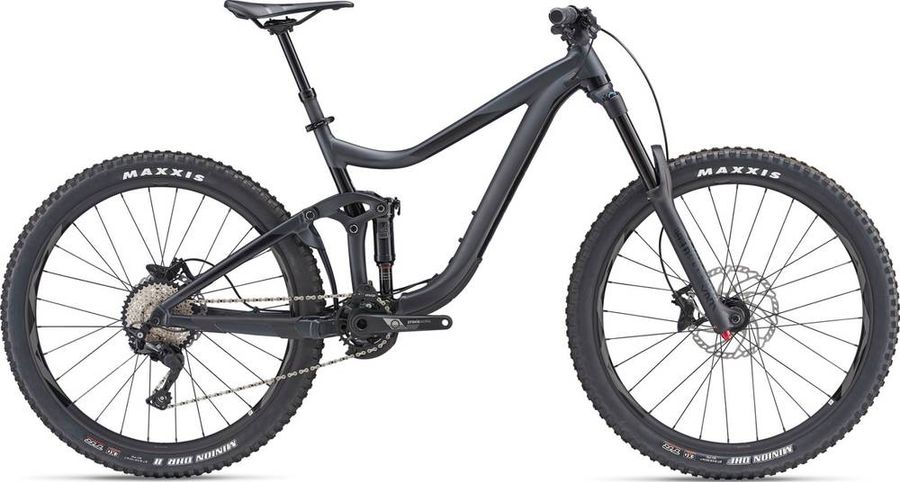

About the Giant Reign 2 2019

The Giant Reign 2 2019 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10).

Specifications

Components
Brake lever	Shimano BL-MT501
Seatpost	Giant Contact
Steam	Giant Contact
Brakes	Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit Black Brake hose kit SM-BH90-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Hose joint Straight J-Kit spec for OEM Model BR-MT520 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard D03S resin Pad standard D02S Metal Pad mount Split pin Piston 4 Piston material Ceramic
Saddle	Giant Contact
Handlebar	Giant Contact

Drivetrain
Crankset	Praxis CADET M30
Chain	KMC X10
Shifter	Shimano Deore SL-M6000 RAPIDFIRE PLUS
Base cover material GFRP Clamp bolt material Stainless steel Primary color Series black Compatible rear derailleur type MTB 10-speed Main lever body material GFRP & Steel Max multiple shifts main lever rear 3 Model SL-M6000-R Mount type Clamp band Optical gear display With Speeds 10 Release function 2-WAY RELEASE release_lever_body.material GFRP & Steel Shifter type RAPIDFIRE PLUS Shifting lever bracket finish Painted Shifting lever bracket material Aluminum Shifting lever cable finish OPTISLICK Shifting lever cable material Stainless steel Shifting lever cable adjust
Rear derailleur	Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 10-speed Lower pulley max 36T Lower pulley min 32T Model RD-M6000-SGS P axle material Steel pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage SGS Speeds 10 Upper pulley max 11T Upper pulley min 11T Total capacity 43T
Cassette	Shimano Deore CS-HG500
Bottom bracket	Praxis BB-90

Frameset
Front suspension	RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color Diffusion Black, Gloss Black, Gloss White Damper type n/a, RC fork offset 42mm (27.5"), 51mm (29") Max tire width (mm) 62, n/a Maximum rotor size 203mm Minimum rotor size 160mm Model FS-YARI-RC-A1 Name Yari RC Spring Dual Position Air, Solo Air Travel (mm) 110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm Upper tube type 35mm tapered wall aluminum Weight based on 29"/27.5"+ Boost Solo Air, RC, 180mm travel Weight 2023 Wheel size 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Frame	Giant ALUXX SL-Grade Alumínio
Rear suspension	RockShox Deluxe RT
Body eyelet Bearing, No Bushing, Standard Compression tune L, L1, LC, M Eye to eye stroke 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65 Lockout force 320 Model RS-DLX-RT-B1 Name Deluxe RT Rebound tune H, L, M Shaft eyelet Bearing, No Bushing, Standard, Trunnion

Wheels
Tires	Maxxis Minion DHF
Front hub	Giant Tracker Performance
Rear hub	Giant Tracker Performance

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Deore 1 × 10

Crank: 30T

Cassette: 11-42T

Speeds: 10s

Gearing

Average

0,72

Average

2,73

Compared to similar bikes, the Giant Reign 2 2019 has a good uphill performance and a regular downhill performance.

Report incorrect information

Geometry

Size	S	M	L	XL
a Seat tube length	380,0	431,0	464,0	496,0
b Seat tube angle	72,5º	72,5º	72,5º	72,5º
c Top tube length	601,0	637,0	657,0	682,0
d Head tube length	95,0	95,0	115,0	125,0
e Head tube angle	64,5º	64,5º	64,5º	64,5º
f Rake	-	-	-	-
g Trail	-	-	-	-
h Wheelbase	1178,0	1213,0	1236,0	1262,0
i Chainstay length	435,0	435,0	435,0	435,0
j Bottom bracket drop	7,0	7,0	7,0	7,0
k Stack height	580,0	580,0	599,0	608,0
l Reach	419,0	454,0	499,0	491,0
m Standover height	697,4	715,5	741,3	761,1
x Bottom bracket height	-	-	-	-
y Front center	-	-	-	-
